China WY135H 13.5ton crawler digger cralwer excavator with ISUZU engine

I'm Online Chat Now

China WY135H 13.5ton crawler digger cralwer excavator with ISUZU engine

China China WY135H 13.5ton crawler digger cralwer excavator with ISUZU engine supplier
China WY135H 13.5ton crawler digger cralwer excavator with ISUZU engine supplier China WY135H 13.5ton crawler digger cralwer excavator with ISUZU engine supplier China WY135H 13.5ton crawler digger cralwer excavator with ISUZU engine supplier China WY135H 13.5ton crawler digger cralwer excavator with ISUZU engine supplier

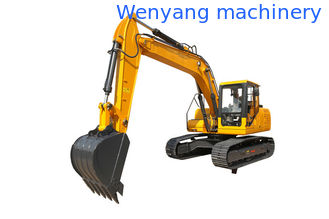

Large Image :  China WY135H 13.5ton crawler digger cralwer excavator with ISUZU engine

Product Details:

Place of Origin: China
Brand Name: Wenyang Machinery
Certification: ISO ,CE
Model Number: WY135H

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 15000 USD-25000 USD
Packaging Details: Rude cargo
Delivery Time: 15 days
Payment Terms: T/T, Western Union,
Supply Ability: 800 sets/year
Contact Now
Detailed Product Description
Weight: 13.5TON Type: Crawler Excavator
Rotation: 360° Rotation Max Digging Depth: 5095mm
Engine: ISUZU Bucket: 0.6m3

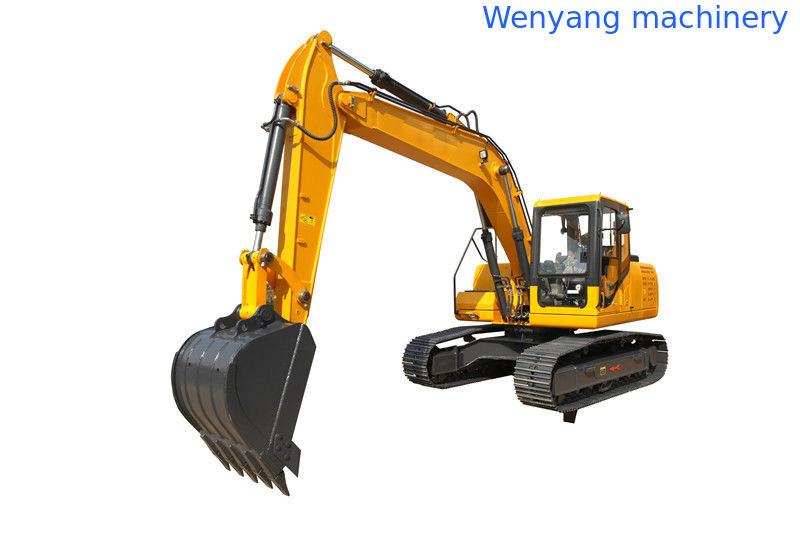

China WY135H 13.5ton crawler digger cralwer excavator with ISUZU engine



MAIN FEATURES:

▲The crawler excavator is economic type excavator ,which matched ISUZU engine with strong power and low noise and low oil consumption and environment protection.

▲Fitted imported brand main pump and valves .

▲ Adopted imported driving motor and swing motor.

▲ Adopted hydraulic pilot servo operation system and hydraulic oil radiator ensure the machine have high working efficiency .

▲The professional structural parts and working mechanism , ensure the machine has reliability and durability .

▲The breaking pipeline equipped improve the working performance .

▲Installed luxury full seal cabin with A/C and LCD display and LED lights etc.

▲ The humanized design , ensure the machine can comfortable operation and convenient maintenance.



>> MAIN CONFIGURATION:

NO DESCRIPTION









1

1-ISUZU 4BG1 engine , 72.7kw/2200rpm. tier II/tier III, turbocharged

2-KAWASAKI brand pump

3-DOOSAN brand valves

4-Korea SUNJIN brand slewing motor and DOOSAN brand driving motor

5-Luxury full seal cabin with A/C and LCD display and LED lights etc.

6-Hydraulic pilot servo operation system

7-Steel track :500mm

8-With broken pipeline system

9- Bucket capacity: 0.6m³

10-Travel speed: high speed and low speed

2

OPTIONAL ACCESSORIES:

1-AUGER

2-BREAKER

3-LOG GRAPPLE



MAIN TECHNICAL PARAMETER

MAIN SEPCIFICATIONS
Bucket capacity 0.6m³
Swing speed 0~12 rpm
Max. gradeability 30°
Max. Bucket digging force 91KN
Max. Arm digging force 55KN
Engine model ISUZU 4BG1
Power /Rotation speed 72.7kw/2200rpm
Hydraulic system pressure 32Mpa
Travel speed 2.5~3.6Km/h
Operation weight 13500kg
MACHINE SIZE
Overall dimension (L*W*H) 7635mm*2500mm*2750mm
Height of cabin 2750mm
Axle base(Track length on ground) 2950mm
Track gauge 2000mm
Min.Ground clearance 400mm
Swing radius at tail 2340mm
Width of track 500mm
WORKING RANGE
Max. Digging height 8540mm
Max. Dumping height 6125mm
Max. Digging depth 5095mm
Max. Vertical digging depth 4650mm
Max. Digging radius 8000mm
Min .swing radius 2445mm

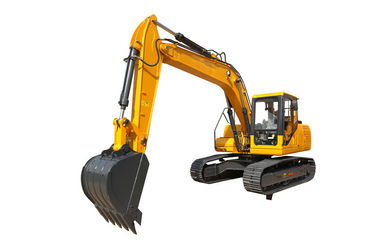

China WY135H 13.5ton crawler digger cralwer excavator with ISUZU engine

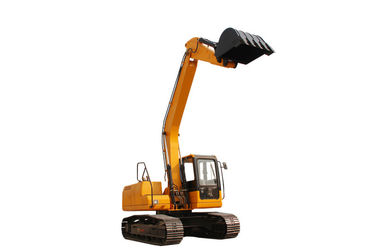

China WY135H 13.5ton crawler digger cralwer excavator with ISUZU engine
