China 2.2ton min digger compact rubber track crawler excavator

I'm Online Chat Now

China 2.2ton min digger compact rubber track crawler excavator

China China 2.2ton min digger compact rubber track crawler excavator supplier

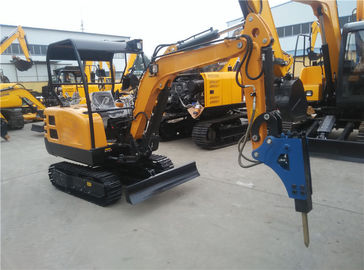

Large Image :  China 2.2ton min digger compact rubber track crawler excavator

Product Details:

Place of Origin: China
Brand Name: Wenyang Machinery
Certification: ISO ,CE
Model Number: WY22H

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 15000 USD-25000 USD
Packaging Details: Rude cargo
Delivery Time: 15 days
Payment Terms: T/T, Western Union,
Supply Ability: 800 sets/year
Detailed Product Description
Weight: 2.2TON Type: Crawler Excavator
Rotation: 360° Rotation Max Digging Depth: 2450mm
Engine: Laidong Bucket: 0.1m3

China 2.2ton min digger compact rubber track crawler excavator



WY22H CRAWLER EXCAVATOR

The crawler excavator is a compact excavator ,which matched tier III engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted international brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with hydraulic broken pipeline system.the machine can changed track from rubber to steel and cabin from open to closed.ensure it can work in different working environments and conditions.

Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.



>> MAIN CONFIGURATION:

NO DESCRIPTION









1

1-China laidong LL385B type engine , 22.1kw/2300rpm, tier III, no turbocharged

2-China brand pump

3-Imported brand valves and slewing motor and driving motor

4-Open cabin(Canopy)

5-Hydraulic pilot servo operation system, two rods controlling driving and steering

6-Rubber track :250mm

7-With broken pipeline system

8-Boom can deflection to left or to right

9-Installed dozer blade

10-With broken pipeline system

MAIN TECHNICAL PARAMETER

MAIN SEPCIFICATIONS
Bucket capacity 0.1m³
Swing speed 0~12 rpm
Max. gradeability 30°
Max. Bucket digging force 13.3KN
Max. Arm digging force 9.3KN
Engine model LL385B
Power /Rotation speed 22.1kw/2300rpm
Hydraulic system pressure 20Mpa
Travel speed 2.5~3.5km/h
Machine weight 2200kg
MACHINE SIZE
Overall dimension (L*W*H) 4080mm*1300mm*2280mm
Height of cabin 2280mm
Axle base(Track length on ground) 1260mm
Track gauge 1050mm
Min.Ground clearance 230mm
Swing radius at tail 1260mm
Width of track 250mm
WORKING RANGE
Max. Digging height 3700mm
Max. Dumping height 2290mm
Max. Digging depth 2450mm
Max. Vertical digging depth 2280mm
Max. Digging radius 4370mm
Min .swing radius 2015mm
Max. Lifting height of blade 240mm
Max. Cutting depth of blade 310mm
Boom swing angle(Left) 75°
Boom swing angle(Right) 45°

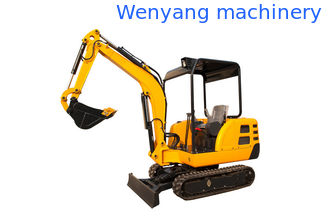

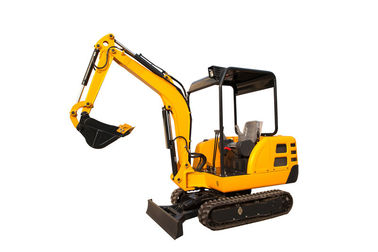

 China 2.2ton min digger compact rubber track crawler excavator

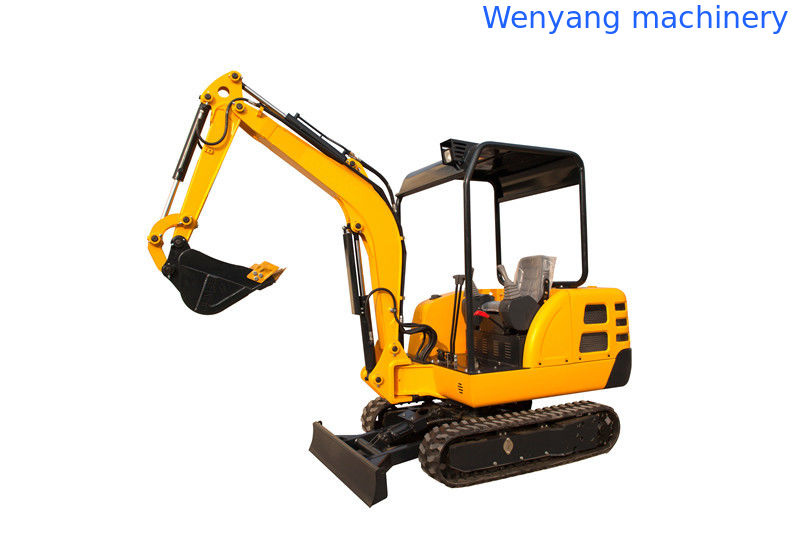

China 2.2ton min digger compact rubber track crawler excavator
