WY08H 800kg mini rubber track excavator compact digging machine

I'm Online Chat Now

WY08H 800kg mini rubber track excavator compact digging machine

China WY08H 800kg mini rubber track excavator compact digging machine supplier

Large Image :  WY08H 800kg mini rubber track excavator compact digging machine

Product Details:

Place of Origin: China
Brand Name: Wenyang Machinery
Certification: ISO ,CE
Model Number: WY08H

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 4600 USD-5000 USD
Packaging Details: iron packing
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Detailed Product Description
Weight: 800kg Type: Mini Rubber Track Excavator
Bucket Capacity: 0.02m3 Max Digging Depth: 1400mm

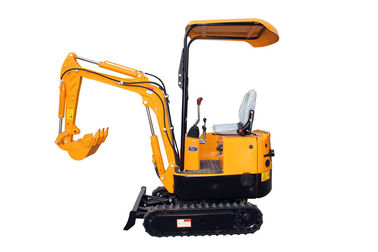

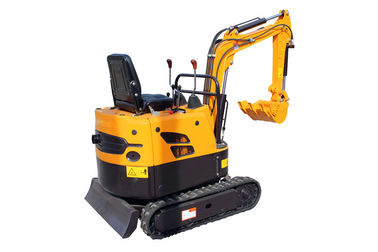

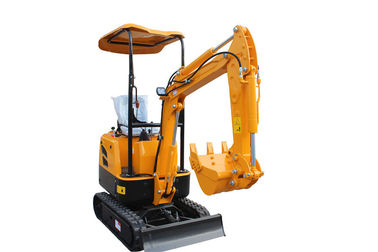

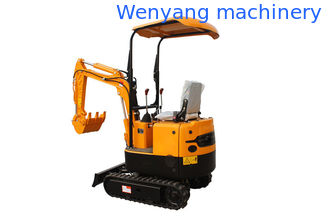

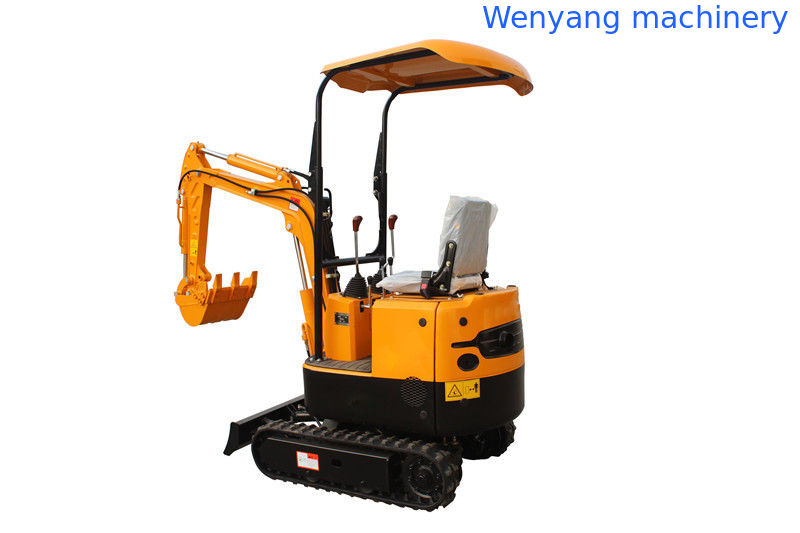

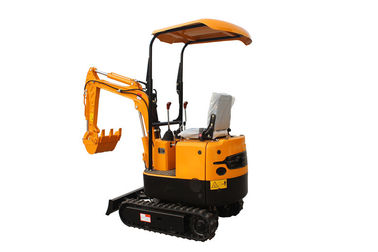

WY08H 800kg mini rubber track excavator compact digging machine



Standard configuration : Manual operation ,Operating weight 882kg , digging bucket : 0.02m3 ,KOOP engine ,power 8.6KW, Max digging depth : 1400mm

This excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.

SPECIFICATION:

Model WY08H
Operating Weight 882kg
Digging bucket capacity 0.02cbm/100kg
Bucket width 340mm
Engine KOOP/CHANGCHAI (192FAM)
Rated power 8.6 kw/3600r/min
Displacement 0.211 L
Bore stroke 70x55
Main pump CBK-F6.8
Displacement 6.8ml/r
Swing motor SJ-TECH (MP-1-160)
Traveling motor KERSEN (OMS-2450)
Travel speed 1.5km/h
MAIN DEMENSIONS
Overall dimension( LxWxH) 2550x946x1330 mm
Wheelbase 770 mm
Total length of track 1090mm
Platform ground clearance 380 mm
Platform back turning radius 733 mm
Chassis width 946 mm
Track width 180 mm
Chassis ground clearance 132 mm
Track height 320 mm
OPERATING RANGE
Max. Digging depth 1400 mm
Max. Vertical digging depth 1320 mm
Max. Digging height 2490mm
Max. Dumping height 1750 mm
Max. Digging radius on ground 2400 mm
Min. Rotation radius 1190 mm
Max. Upgrade height of bulldozer blade 325 mm
Max. Digging depth of bulldozer blade 175 mm

WY08H 800kg mini rubber track excavator compact digging machine

WY08H 800kg mini rubber track excavator compact digging machine

WY08H 800kg mini rubber track excavator compact digging machine
