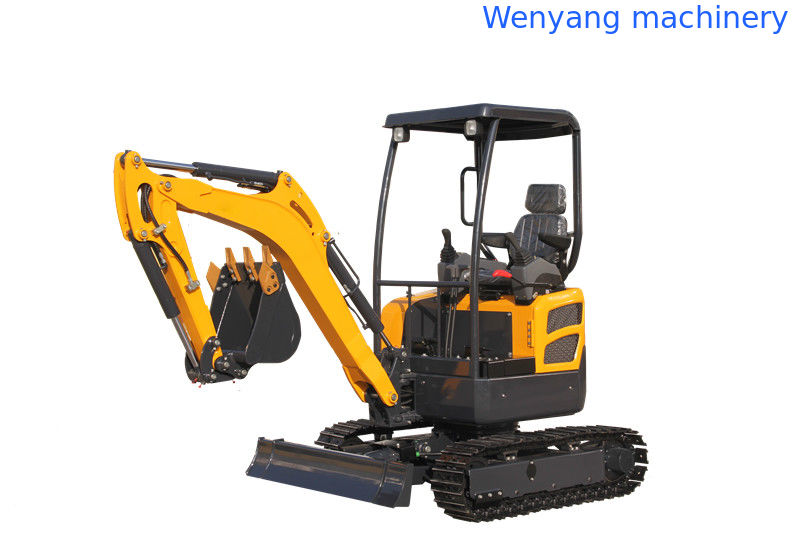

WY20H canopy Kubota engine mini crawler excavator with pipeline system

I'm Online Chat Now

WY20H canopy Kubota engine mini crawler excavator with pipeline system

China WY20H canopy Kubota engine mini crawler excavator with pipeline system supplier
WY20H canopy Kubota engine mini crawler excavator with pipeline system supplier WY20H canopy Kubota engine mini crawler excavator with pipeline system supplier WY20H canopy Kubota engine mini crawler excavator with pipeline system supplier WY20H canopy Kubota engine mini crawler excavator with pipeline system supplier

Large Image :  WY20H canopy Kubota engine mini crawler excavator with pipeline system

Product Details:

Place of Origin: China
Brand Name: Wenyang Machinery
Certification: ISO ,CE
Model Number: WY20H

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 15000 USD-25000 USD
Packaging Details: Rude cargo
Delivery Time: 15 days
Payment Terms: T/T, Western Union
Supply Ability: 800 sets/year
Contact Now
Detailed Product Description
Weight: 2000kg Type: Crawler Excavator
Rotation: 360° Rotation Max Digging Depth: 2400mm
Engine: KUBOTA

WY20H canopy Kubota engine mini crawler excavator with pipeline system



NO DESCRIPTION









1

1-Japan KUBOTA (D1105) engine , 14.1kw/2000rpm, tier III , No turbocharged

2-CASAPPA brand pump and WALVOIL valves from Italy

3-EATON brand slewing motor

4-EATON brand driving motor

5-Open cabin(Canopy)

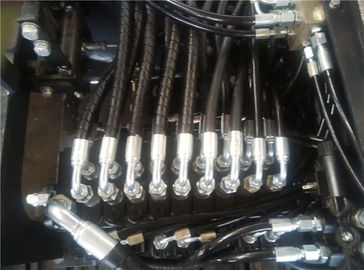

6-Hydraulic pilot servo operation system, two rods controlling the driving and steering

7-Steel track :230mm

8-With broken pipeline system

9- Bucket capacity: 0.07m³

10-Boom can deflection to left or to right

11-Installed dozer blade

2

OPTIONAL ACCESSORIES(According with your need):

1-Auger

2-Breaker

3-Log grapple

MAIN SEPCIFICATIONS
Bucket capacity 0.07m³
Swing speed 0~9 rpm
Max. gradeability 35°
Max. Bucket digging force 18KN
Max. Arm digging force 11KN
Engine KUBOTA , TIER III
Power /Rotation speed 14.1kw/2000rpm
Hydraulic system pressure 21.5Mpa
Travel speed 3~4km/h
Machine weight 2000kg
MACHINE SIZE
Overall dimension (L*W*H) 3555mm*990mm/1300mm*2290mm
Height of cabin 2290mm
Axle base(Track length on ground) 1230mm
Track gauge 760mm
Min.Ground clearance 150mm
Swing radius at tail 650mm
Width of track 230mm
WORKING RANGE
Max. Digging height 3700mm
Max. Dumping height 2440mm
Max. Digging depth 2400mm
Max. Vertical digging depth 2025mm
Max. Digging radius 4040mm
Min .swing radius 1610mm
Max. Lifting height of blade 240mm
Max. Cutting depth of blade 270mm
Boom swing angle(Left) 75°
Boom swing angle(Right) 45°

 WY20H canopy Kubota engine mini crawler excavator with pipeline system

WY20H canopy Kubota engine mini crawler excavator with pipeline system

WY20H canopy Kubota engine mini crawler excavator with pipeline system

WY20H canopy Kubota engine mini crawler excavator with pipeline system
