China 360° rotation 1.8ton mini crawler excavator with break hammer

I'm Online Chat Now

China 360° rotation 1.8ton mini crawler excavator with break hammer

China China 360° rotation 1.8ton mini crawler  excavator with break hammer supplier
China 360° rotation 1.8ton mini crawler  excavator with break hammer supplier China 360° rotation 1.8ton mini crawler  excavator with break hammer supplier China 360° rotation 1.8ton mini crawler  excavator with break hammer supplier China 360° rotation 1.8ton mini crawler  excavator with break hammer supplier

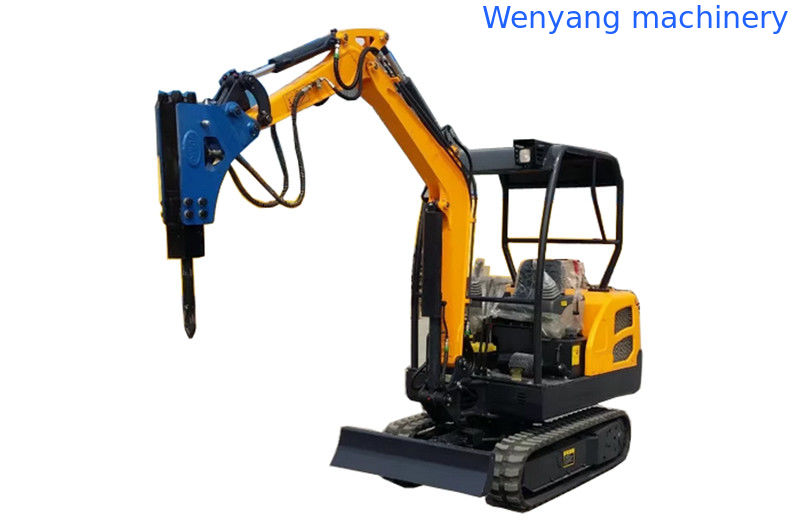

Large Image :  China 360° rotation 1.8ton mini crawler excavator with break hammer

Product Details:

Place of Origin: China
Brand Name: Wenyang Machinery
Certification: ISO ,CE
Model Number: WY18H

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 10000 USD-15000 USD
Packaging Details: iron packing
Delivery Time: 15 days
Payment Terms: T/T, Western Union
Supply Ability: 800 sets/year
Contact Now
Detailed Product Description
Weight: 1800kg Type: Mini Crawler Excavator
Rotation: 360° Rotation Max Digging Depth: 2050mm
Attachment: Breaker Hammer

China 360° rotation 1.8ton mini crawler excavator with break hammer



NO DESCRIPTION









1

1-China laidong KM385B type engine , 18.1kw/2200rpm, no turbocharged

2-China brand pump and valves

3-Imported international brand slewing motor and slewing reducer

4-Imported international brand driving motor

5-Open cabin

6-Hydraulic pilot servo operation system, two rods controlling the driving and steering

7-Rubber track :230mm

8-With broken pipeline system

9- Grab capacity: 0.06m³

10-Boom can deflection to left or to right

11-Installed dozer blade



MAIN TECHNICAL PARAMETER

MAIN SEPCIFICATIONS
Bucket capacity 0.06m³
Swing speed 10~12 rpm
Max. gradeability 35°
Max. Bucket digging force 14KN
Max. Arm digging force 10KN
Engine model KM385B
Power /Rotation speed 18.1kw/2200rpm
Hydraulic system pressure 16Mpa
Machine weight 1800kg
MACHINE SIZE
Overall dimension (L*W*H) 3865mm*1050mm*2270mm
Height of cabin 2270mm
Axle base(Track length on ground) 1230mm
Track gauge 820mm
Min.Ground clearance 210mm
Swing radius at tail 1125mm
Width of track 230mm
WORKING RANGE
Max. Digging height 3365mm
Max. Dumping height 2385mm
Max. Digging depth 2050mm
Max. Vertical digging depth 1955mm
Max. Digging radius 3860mm
Min .swing radius 1125mm
Max. Lifting height of blade 230mm
Max. Cutting depth of blade 275mm
Boom swing angle(Left) 75°
Boom swing angle(Right) 45°

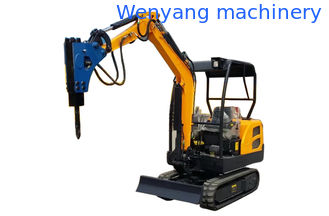

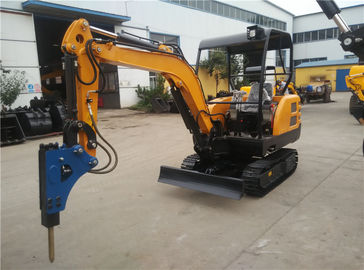

 China 360° rotation 1.8ton mini crawler  excavator with break hammer

China 360° rotation 1.8ton mini crawler  excavator with break hammer

China 360° rotation 1.8ton mini crawler  excavator with break hammer
