| Weight: | 9TON | Type: | Crawler Excavator |
|---|---|---|---|
| Rotation: | 360° Rotation | Max Digging Depth: | 4015mm |
| Engine: | Cummins | Bucket: | 0.4m3 |

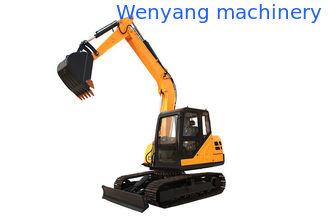

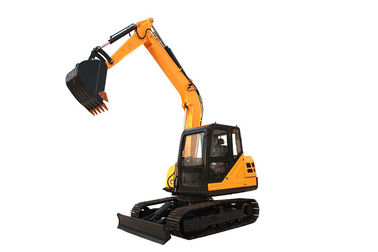

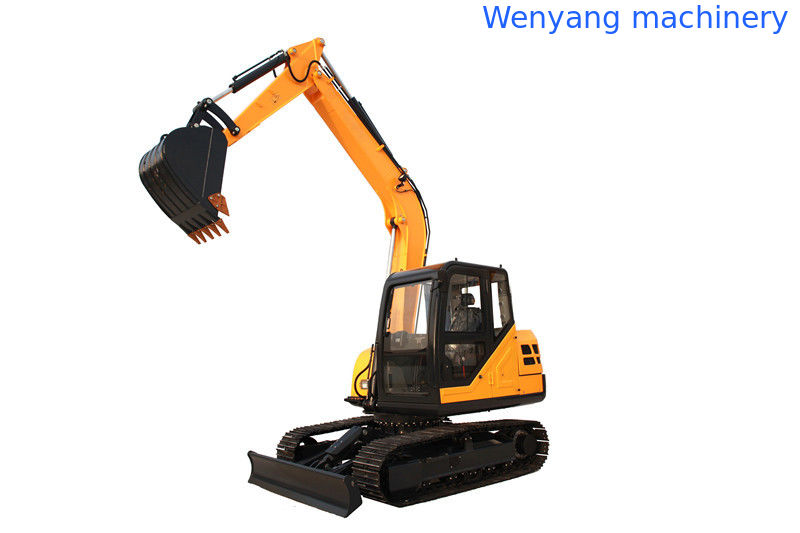

China WY90H 9ton crawler digger cralwer excavator with Cummins engine
>> MAIN FEATURES:
▲The crawler excavator is an economic type excavator ,which matched CUMMINS engine with strong power and low oil consumption and environment protection.
▲Fitted imported brand main pump and valves .
▲ Adopted imported driving motor and swing motor.
▲ Adopted hydraulic pilot servo operation system and hydraulic oil radiator ensure the machine have high working efficiency .
▲The professional structural parts and working mechanism , ensure the machine has reliability and durability .
▲The breaking pipeline equipped improve the working performance .
▲Installed luxury full seal cabin with A/C and LCD display and LED lights etc.
▲ The humanized design , ensure the machine can comfortable operation and convenient maintenance.
>> MAIN CONFIGURATION:
| NO | DESCRIPTION |
|
1 |
1-CUMMINS engine , 53kw/2200rpm.tier III, turbocharged 2-KAWASAKI brand hydraulic pump 3- HUSCO brand main valves 4-EATON brand slewing motor and driving motor 5-Luxury full seal cabin with A/C and LCD display and LED lights etc. 6-Hydraulic pilot servo operation system 7-Steel track :450mm 8-With broken pipeline system 9- Bucket capacity: 0.4m³ 10-Installed dozer blade 11-Travel speed : high speed and low speed |
| 2 |
OPTIONAL ACCESSORIES: 1-AUGER 2-BREAKER 3-LOG GRAPPLE |
MAIN TECHNICAL PARAMETER
| MAIN SEPCIFICATIONS | |
| Bucket capacity | 0.4m³ |
| Swing speed | 0~12 rpm |
| Max. gradeability | 35° |
| Max. Bucket digging force | 58KN |
| Max. Arm digging force | 40KN |
| Engine model | CUMMINS QSF2.8 |
| Power /Rotation speed | 53kw/2200rpm |
| Hydraulic system pressure | 27.5Mpa |
| Travel speed | 2.4~3.6km/h |
| Operation weight | 9000kg |

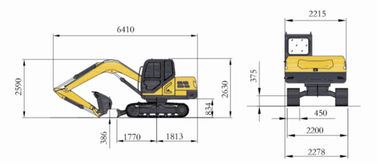

| MACHINE SIZE | |
| Overall dimension (L*W*H) | 6410mm*2278mm*2630mm |
| Height of cabin | 2630mm |
| Axle base(Track length on ground) | 2209mm |
| Track gauge | 1750mm |
| Min.Ground clearance | 375mm |
| Swing radius at tail | 1813mm |
| Width of track | 450mm |
| WORKING RANGE | |
| Max. Digging height | 7050mm |
| Max. Dumping height | 5188mm |
| Max. Digging depth | 4015mm |
| Max. Vertical digging depth | 3550mm |
| Max. Digging radius | 6540mm |
| Min .swing radius | 2140mm |
| Max. Lifting height of blade | 370mm |
| Max. Cutting depth of blade | 344mm |
