Product Details:
Payment & Shipping Terms:
|
| Weight: | 7.5TON | Type: | Crawler Excavator |
|---|---|---|---|
| Rotation: | 360° Rotation | Max Digging Depth: | 3898mm |
| Engine: | Yuchai | Bucket: | 0.28m3 |

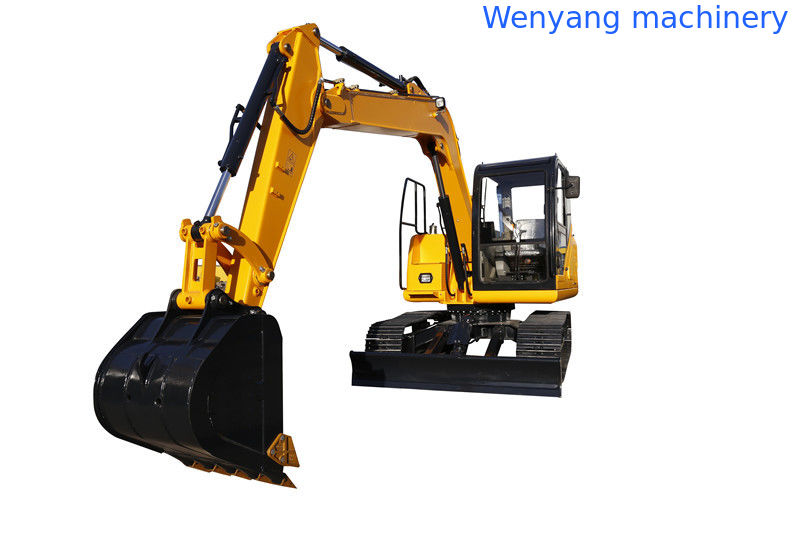

China WY75H 7.5ton crawler digger cralwer excavator with ISUZU engine
>> MAIN FEATURES:
▲The crawler excavator is an economic type excavator ,which matched ISUZU engine with strong power and low oil consumption and environment protection.
▲Fitted imported brand main pump and valves .
▲ Adopted imported driving motor and swing motor.
▲ Adopted hydraulic pilot servo operation system and hydraulic oil radiator ,ensure the machine have high working efficiency .
▲The professional structural parts and working mechanism , ensure the machine has reliability and durability .
▲The breaking pipeline equipped improve the working performance .
▲Installed luxury full seal cabin with A/C and LCD display and LED lights etc.
▲ The humanized design , ensure the machine can comfortable operation and convenient maintenance.
>> CONDITIONS:
| NO | DESCRIPTION |
|
1 |
1-ISUZU 4JG1 engine , 40.9kw/2100rpm. Tier II/tier III, turbocharged 2-KAWASAKI brand pump and HUSCO valves 3-EATON slewing motor and driving motor 4-Luxury full seal cabin with A/C and LCD display and LED lights etc. 5-Hydraulic pilot servo operation system 6-Steel track :450mm 7-With broken pipeline system 8- Bucket capacity: 0.28m³ 9-Installed dozer blade 10-Travel speed: high speed and low speed |
| 2 |
OPTIONAL ACCESSORIES: 1-Auger 2-Breaker 3-Log grapple |
MAIN TECHNICAL PARAMETER
| MAIN SEPCIFICATIONS | |
| Bucket capacity | 0.28m³ |
| Swing speed | 0~11 rpm |
| Max. gradeability | 35° |
| Max. Bucket digging force | 56KN |
| Max. Arm digging force | 38KN |
| Engine | ISUZU |
| Power /Rotation speed | 40.9kw/2100rpm |
| Hydraulic system pressure | 27Mpa |
| Travel speed | 2.5~3.5km/h |
| Operation weight | 7500kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 6054mm*2216mm*2672mm |
| Height of cabin | 2672mm |
| Axle base(Track length on ground) | 2209mm |
| Track gauge | 1745mm |
| Min.Ground clearance | 375mm |
| Swing radius at tail | 1730mm |
| Width of track | 450mm |
| WORKING RANGE | |
| Max. Digging height | 7023mm |
| Max. Dumping height | 5195mm |
| Max. Digging depth | 3898mm |
| Max. Vertical digging depth | 2968mm |
| Max. Digging radius | 6182mm |
| Min .swing radius | 1740mm |
| Max. Lifting height of blade | 382mm |
| Max. Cutting depth of blade | 332mm |
