3.5T-4.5T Heavy Duty Paper Roll Clamp For Forklift

I'm Online Chat Now

3.5T-4.5T Heavy Duty Paper Roll Clamp For Forklift

China 3.5T-4.5T Heavy Duty Paper Roll Clamp For Forklift supplier

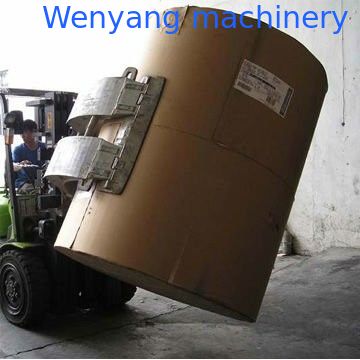

Large Image :  3.5T-4.5T Heavy Duty Paper Roll Clamp For Forklift

Product Details:

Place of Origin: Xiamen China

Payment & Shipping Terms:

Minimum Order Quantity: 1
Delivery Time: 20 days
Shiping port: Xiamen
Contact Now
Detailed Product Description

Application

1. Paper roll clamps are designed to help you handling the heavy paper rolls more conveniently and efficiently. It can be widely used in mills, warehouses, printers, newspaper publishers, converters, etc.

2.Big paper roll clamps are greatly appreciated in the markets based on the high quality and reliable performance.



Features

1.Rational designed, compact structure, excellent driver visibility, easy operating, improve work efficiency.

2.Thin arm profile and smooth arm contour eases roll break out and permits close stacking.

3.Contact pads with integral casting structure, abrasion resistance, and long service life. Contact pads surface reasonable, provide the best clamping friction.

4.Hydraulic retention of cylinder valves is to ensure reliable clamping of long distance transportation.

5.Continuous 360° rotation, any angle position of lock function, revolving positing 90° or 180°.

6.Rated capacity is around 3.5~4.5 tons, and we can also provide the customized products base on your specific  requirement.



capacity(kg) Roll
Range(mm)
Catalog
Order No.
Mounting
Class
Mounting
Angle
Long
Arm
Thickness (mm)
Short
Arm
Length (mm)
Long
Arm
Thickness (mm)
Vertical
Center of
Gravity (mm)
Weight (kg) Effective
Thickness (mm)
Horizontal
Center of
Gravity (mm)
3500 250-1520 RCP35F-001B 3rd 1000 670 65 343 1190 218 320
3500 250-1520 RCP35F-001C 4th 1000 670 65 343 1199 218 320
3500 610-1520 RCF35F-002B 3rd 1000 670 65 343 1180 218 320
3500 610-1520 RCF35F-002C 4th 1000 670 65 343 1190 218 320
4000 250-1300 RCP35F-007B 3rd 875 575 65   1146 218 295
4000 250-1300 RCP35F-007C 4th 875 575 65   1155 218 295
4000 560-1300 RCF35F-008B 3rd 875 575 65   1137 218 295
4000 560-1300 RCF35F-008C 4th 875 575 65   1146 218 295
4100 250-1520 RCP45F-001C 4th 965 680 85   1294 198 310
4100 530-1520 RCF45F-002C 4th 965 680 85   1285 198 310
3400 360-1830 RCP45F-003C 4th 1105 815 85   1385 198 338
3400 660-1830 RCF45F-004C 4th 1105 815 85   1376 198 338
4500 250-1300 RCP45F-007C 4th 900 565 85   1242 198 284
4500 560-1300 RCF45F-008C 4th 900 565 85   1233 198 284
