Applications

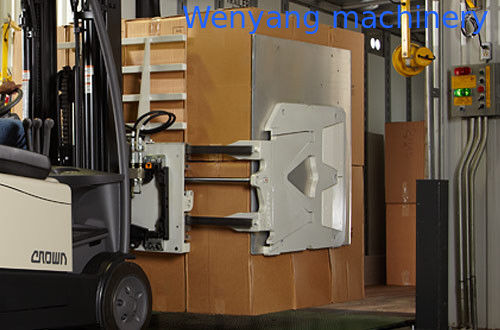

1.Carton clamps can efficiently and econormically handle paper carton, wooden carton, metal carton and other scrap bales.
2.Applicable in such fields as storage, home electric appliance and electronics for handling and and stacking paper carton goods without a tray
Features
1.Proven durable f-beam arm aluminum frame construction.
2.Regenerative hydraulic valving for optimal arm speed.
3.Superior arm-slide bearing for extended service life.
4.Vulcanized rubber pads design, economically.
5.Excellent driver visibility.
| Capacity@Load Center(kg@mm) | Catalog Order No. | Opening Range (mm) | Mounting Class | Arm Height A(mm) | Arm Length B(mm) | Frame Width D(mm) | Vertical Center of Gravity VCG(mm) | Weight (kg) | Effective Thickness ET(mm) | Horizontal Center of Gravity HCG(mm) |
| 1150@600 | CCS15D-001A | 380-1530 | II | 1220 | 1220 | 940 | 320 | 650 | 127 | 439 |
| 1600@510 | CCS20D-002A | 560-1930 | II | 1200 | 1065 | 1040 | 325 | 644 | 127 | 422 |
| 1600@535 | CCS20D-003A | 560-1930 | II | 1220 | 1170 | 1040 | 325 | 651 | 127 | 427 |
| 1600@585 | CCS20D-004A | 560-1930 | II | 1220 | 1220 | 1040 | 315 | 696 | 127 | 447 |
| 1600@610 | CCS20D-005A | 560-1930 | II | 1220 | 1220 | 1040 | 320 | 705 | 127 | 450 |
| 1400@710 | CCS20D-006A | 560-1930 | II | 1220 | 1420 | 1040 | 315 | 770 | 127 | 483 |
| 1450@685 | CCS20D-007A | 560-1930 | II | 1525 | 1370 | 1040 | 380 | 824 | 127 | 485 |
| 2300@510 | CCS30D-008B | 535-1850 | III | 1525 | 1015 | 1015 | 450 | 899 | 152 | 485 |
| 2300@535 | CCS30D-009B | 535-1850 | III | 1525 | 1066 | 1015 | 450 | 906 | 152 | 485 |
