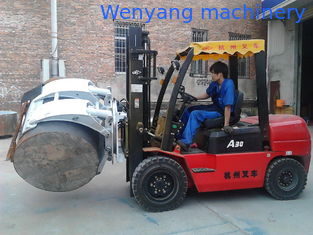

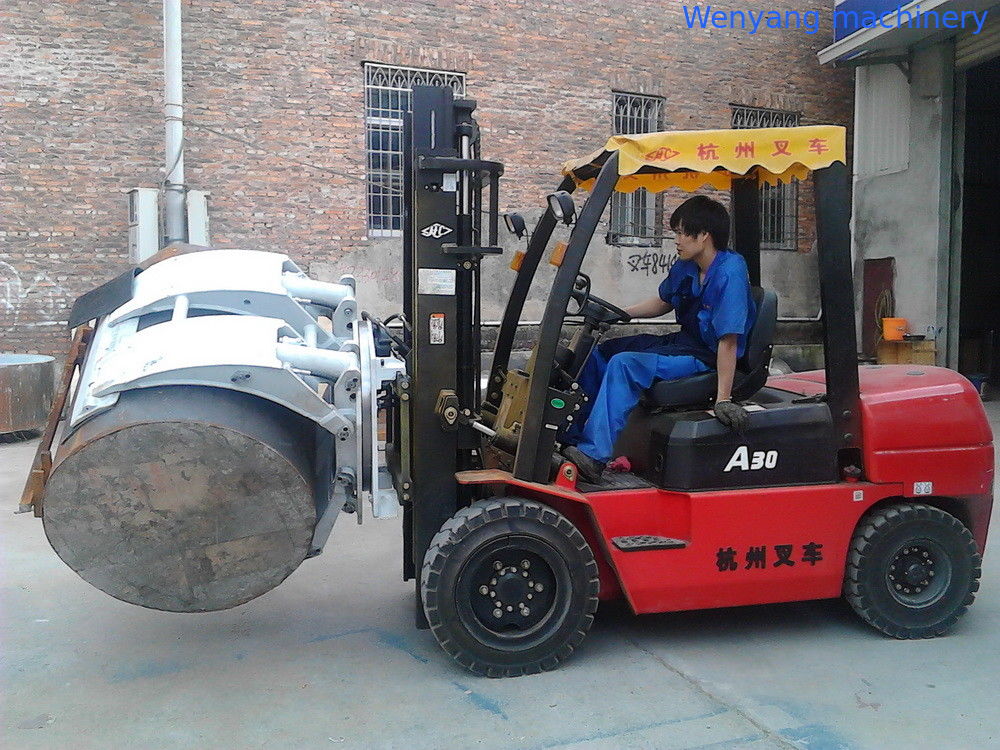

360 degree paper roll clamps are applied to transporting and stacking all kinds of paper roll effectively and safely in paper making, printing, packing industry, etc.
Features
1.Rational designed, compact structure, excellent driver visibility, easy operating, improve work efficiency.
2.Thin arm profile and smooth arm contour eases roll break out and permits close stacking.
3.Contact pads with integral casting structure, abrasion resistance, and long service life. Contact pads surface reasonable, provide the best clamping friction.
4.Hydraulic retention of cylinder valves is to ensure reliable clamping of long distance transportation.
5.Continuous 360° rotation, any angle position of lock function, revolving positing 90° or 180°.
6.Rated capacity is around 2.0~2.7 tons, and we can also provide the customized products base on your specific requirement.
|
Name |
Capacity (kg) |
Roll Range (mm) |
Type |
Mounting Class |
Long Arm Length A (mm) |
Short Arm Length B (mm) |
Weight (kg) |
Effective Thickness ET (mm) |
Horizontal Center of Gravity HCG (mm) |
|
Paper roll clamp |
2000 |
250-1300 |
RCP20F-001A |
II |
825 |
570 |
677 |
197 |
287 |
|
2000 |
250-1300 |
RCP20F-001B |
III |
825 |
570 |
690 |
237 |
325 |
|
|
2000 |
630-1300 |
RCF20F-002A |
II |
825 |
570 |
667 |
197 |
282 |
|
|
2000 |
630-1300 |
RCF20F-002B |
III |
825 |
570 |
681 |
237 |
320 |
|
|
2000 |
250-1500 |
RCP20F-003A |
II |
955 |
775 |
751 |
197 |
283 |
|
|
2000 |
250-1500 |
RCP20F-003B |
III |
955 |
775 |
765 |
237 |
307 |
|
|
2000 |
530-1500 |
RCF20P-004A |
II |
955 |
775 |
744 |
197 |
280 |
|
|
2000 |
530-1500 |
RCF20F-004B |
III |
955 |
775 |
758 |
237 |
304 |
|
|
2000 |
630-1600 |
RCF20F-005A/B |
II/III |
955 |
775 |
755 |
183/216 |
301 |
|
|
2000 |
350-1600 |
RCP20F-006A/B |
II/III |
955 |
775 |
765 |
183/216 |
304 |
|
|
1700 |
680-1830 |
RCF20F-007B |
III |
1130 |
930 |
880 |
239 |
445 |
|
|
1700 |
380-1830 |
RCP20F-008B |
III |
1130 |
930 |
886 |
239 |
445 |
|
|
2700 |
330-1350 |
RCP30F-009B |
III |
850 |
570 |
759 |
198 |
272 |
|
|
2700 |
530-1350 |
RCF30F-012B |
III |
850 |
570 |
752 |
198 |
272 |
|
|
2700 |
250-1520 |
RCP30F-011B |
III |
955 |
685 |
830 |
198 |
307 |
|
|
2700 |
560-1520 |
RCF30F-010B |
III |
955 |
685 |
823 |
198 |
307 |
|
|
2000 |
250-1300 |
RCS20D-001A |
II |
825 |
560 |
717 |
197 |
269 |
|
|
2000 |
250-1300 |
RCS20D-001B |
III |
825 |
560 |
731 |
237 |
307 |
|
|
2700 |
250-1300 |
RCS30D-002A |
II |
845 |
570 |
854 |
203 |
307 |
|
|
2700 |
250-1300 |
RCS30D-002B |
III |
845 |
570 |
858 |
198 |
307 |
