Application

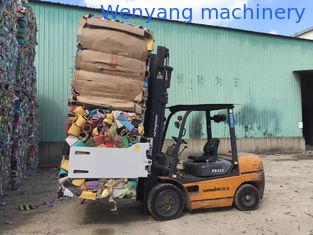

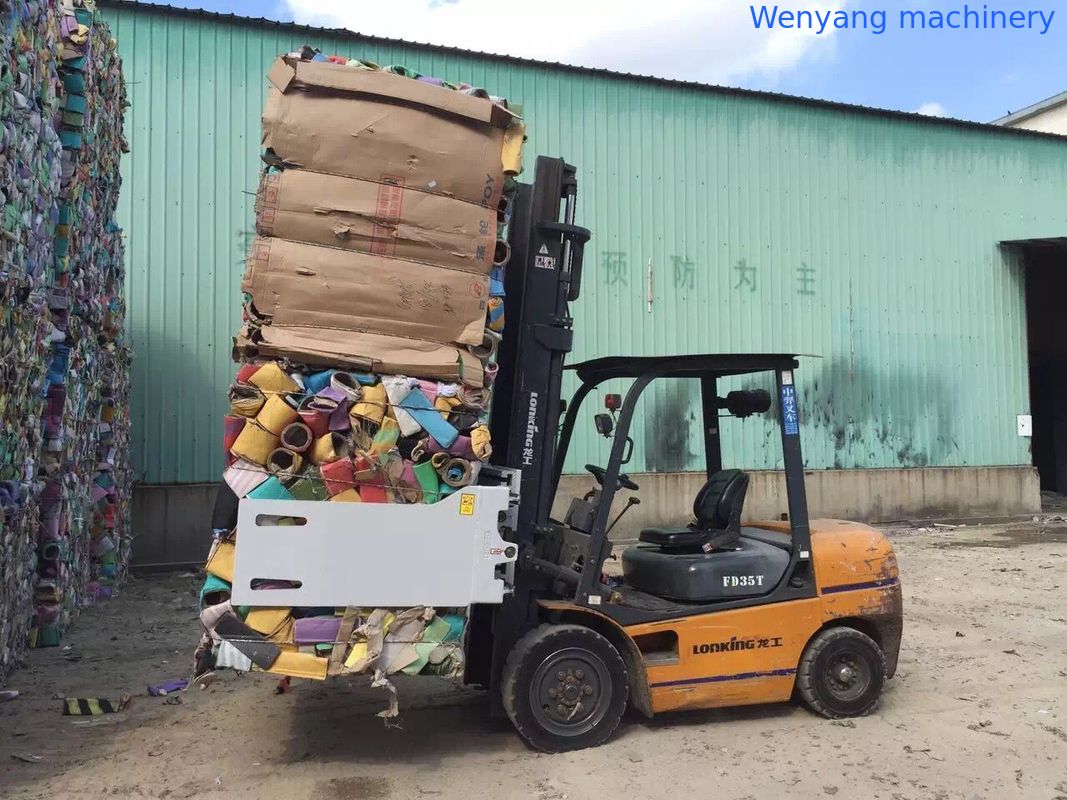

1.Bale clamp efficiently and economically handle nearly any type of baled products including cotton, wool, synthetic, textile bales, corrugated, newsprint, rag, hay, metal and other scrap bales.
2.High efficiency and economy to handle in without work platform condition.
Features
1.Proven durable T-beam arm aluminum frame construction.
2.Superior arm-slide bearing for extended service life.
3.Ribs provide secure grip and give driver good tip handling and bale spinning capabilities.
4.Regenerative hydraulic valving for optimal arm speed.
5.Excellent driver visibility.
Capacity/ |
Type |
Mounting Class |
Opening Range |
Arm Height A |
Arm Length B |
Frame Width C |
Overall Height H (mm) |
Weight(kg) |
Horizontal |
1400@500 |
BCS15D-001A |
II |
420-1570 |
415 |
990 |
940 |
645 |
415 |
315 |
1400@500 |
BCS15D-002A |
II |
420-1570 |
415 |
915 |
940 |
645 |
405 |
307 |
1900@500 |
BCS20D-003A |
II |
455-1735 |
415 |
685 |
1040 |
665 |
350 |
203 |
1900@500 |
BCS20D-004A |
II |
455-1735 |
415 |
785 |
1040 |
665 |
377 |
239 |
1900@500 |
BCS20D-005A |
II |
450-1730 |
415 |
915 |
1040 |
665 |
418 |
307 |
1900@500 |
BCS20D-006A |
II |
450-1730 |
415 |
991 |
1040 |
665 |
422 |
315 |
1900@500 |
BCS20D-007A |
II |
450-1730 |
415 |
1194 |
1040 |
665 |
465 |
401 |
2700@500 |
BCS30D-008A |
II |
550-1900 |
460 |
991 |
1015 |
730 |
556 |
315 |
2700@500 |
BCS30D-008B |
III |
550-1900 |
460 |
991 |
1015 |
730 |
579 |
312 |
2700@500 |
BCS30D-009A |
II |
545-1890 |
460 |
1194 |
1015 |
730 |
624 |
396 |
2700@500 |
BCS30D-009B |
III |
545-1890 |
460 |
1194 |
1015 |
730 |
640 |
391 |
2700@500 |
BCS30D-010A |
II |
550-1900 |
460 |
915 |
1015 |
730 |
538 |
307 |
2700@500 |
BCS30D-010B |
III |
550-1900 |
460 |
915 |
1015 |
730 |
538 |
305 |
2200@500 |
BCS30D-011B |
III |
490-2300 |
460 |
990 |
1600 |
730 |
710 |
240 |
2200@500 |
BCS30D-012B |
III |
490-2300 |
460 |
1195 |
1600 |
730 |
730 |
240 |
