Application

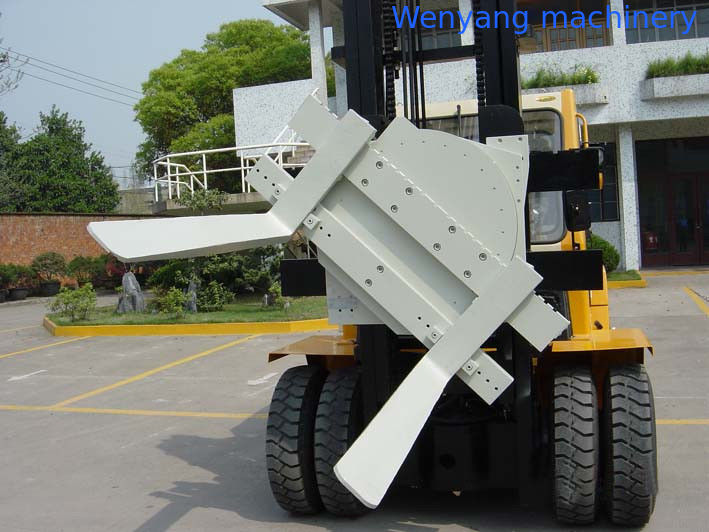

1.Heavy duty rotators are designed to handle operate heavy cargo whose weight are from 5.0Tons to 7.0Tons. Our heavy duty rotators can help you quickly dump or invert a load, and then immediately return the forks to the pick-up position in one continuous motion.
2.Heavy duty rotators are widely used in food processing automotive manufacturing,chemical processing, recycling operations, smelting and casting operations, and general manufacturing. You are welcome to contact us if you need higher capacity rotators or total solutions of your business.
Features
1.Proven durable construction design, unique rotating drive system, meet the high strength continuous operation.
2.Strong rotating driving torque achieved the stable and reliable rotating function.
3.Hydraulic motor fixed with reversible hydraulic lock, any angle position of lock function.
Capacity@ Load Center (kg) |
Catalog Order No. |
Truck/ Rotator Mounting Class | Rotator/ Fork Mounting Class | Carriage Width (mm) | Fork Max. Spacing (mm) | Overall Width (mm) |
Vertical Center of Gravity (mm) |
Vertical Center of Gravity (mm) |
Weight (kg) |
Effective Thickness (mm) |
Horizontal Center of Gravity (mm) |
5400@500 | RRB50D-001B | III | III | 1065 | 960 | 1090 | 343 | 340 | 465 | 163 | 84 |
5400@500 | RRB50D-001C | IV | III | 1065 | 960 | 1090 | 343 | 285 | 518 | 221 | 132 |
5400@500 | RRB50D-002B | III | III | 1525 | 1418 | 1550 | 343 | 330 | 513 | 163 | 91 |
5400@500 | RRB50D-002C | IV | III | 1525 | 1418 | 1550 | 343 | 275 | 565 | 221 | 137 |
5400@600 | RRB50D-003C | IV | IV | 1245 | 1115 | 1285 | 343 | 400 | 726 | 173 | 97 |
5400@600 | RRB50D-004C | IV | IV | 1550 | 1420 | 1590 | 343 | 395 | 783 | 173 | 99 |
5400@600 | RRB50D-005C | IV | IV | 1855 | 1725 | 1890 | 343 | 390 | 840 | 173 | 102 |
6800@600 | RRB70D-001C | IV | IV | 1245 | 1245 | 1285 | 343 | 415 | 924 | 218 | 119 |
6800@600 | RRB70D-002C | IV | IV | 1550 | 1550 | 1590 | 343 | 410 | 981 | 218 | 127 |
6800@600 | RRB70D-003C | IV | IV | 1855 | 1855 | 1890 | 343 | 405 | 1040 | 218 | 130 |
