Product Details:
Payment & Shipping Terms:
|
| Rated Capacity: | 1.5TON | Operating Weight: | 5230kg |
|---|---|---|---|
| Bucket Capacity: | 0.8m3 | Engine: | YUNNEI |
| Engine Model: | YN38GB1 | Engine Power: | 65KW/2400rpm |
| Hydarulic System Type: | Pilot Control |

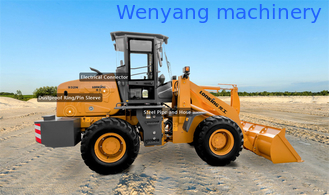

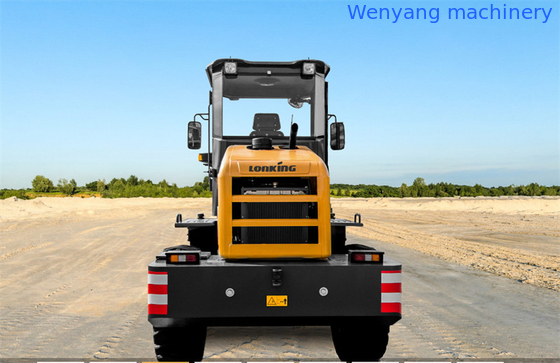

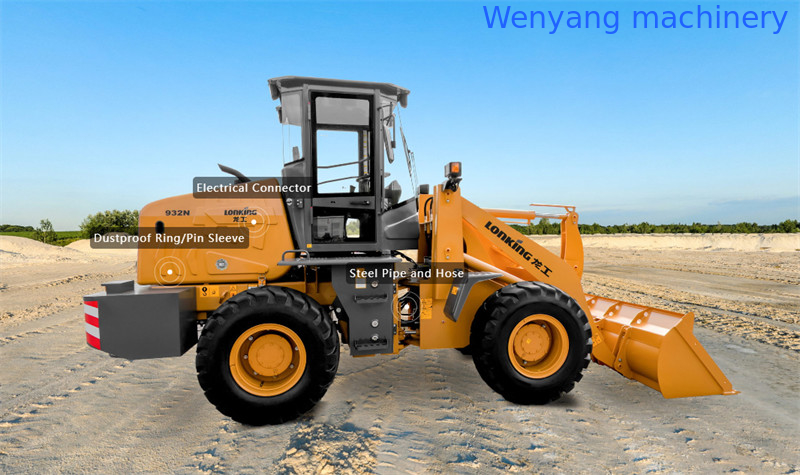

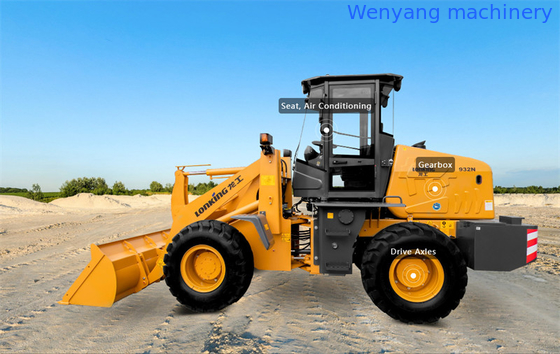

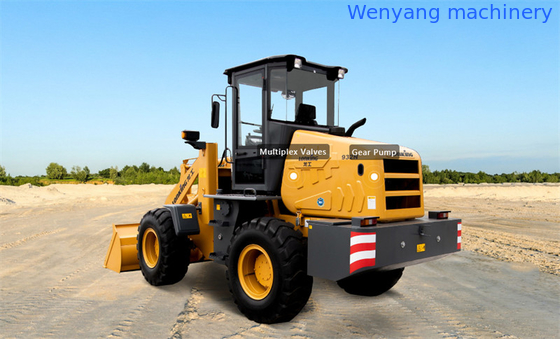

Lonking CDM932N 1.5TON 0.8m3 wheel loader with YUNNEI engine YN38GB1
Lonking -Top Brand Wheel Loader Manufacturer
200,000 Units More Working Worldwide
Pay Loader, Chinese Pay Loader, Chinese Wheel Loader, Chinese 3T Wheel Loader, Chinese 5T Wheel Loader,
Chinese Large Wheel Loader, Chinese Small Wheel Loader, 1T-2.3T wheel loader
Cummins Engines and ZF Transmission & Axles
Pilot Control System, Automatic Leveling
Complete line of applications and accessories
Easy maintenance & Outstanding After-sales
Top brand quality, reliable and save 20% plus
Supply Lonking complete series of wheel loader , include 1.2ton , 1.5ton ,2ton ,3ton ,3.5ton , 4ton ,5ton ,6.5ton ,7ton
| CONFIGURATION |
| YUNNEI Engine |
| Lonking Transmission |
| Lonking Torque Converter |
| Lonking Drive Axle |
| Pilot Control Working System |
| Hight Dump |
| Air Conditioner |
| TECHNICAL PARAMETERS | ||
| Basic | Bucket capcity | 0.8m3 |
| Rated payload | 1500kg | |
| Operating weight | 5230kg | |
| Traction force | 52kN | |
| Breakout force | 35kN | |
| L*W*H | 5925*2100*2950mm | |
| Engine | Manufacturer/Model | YUNNEI/YN38GB1(Nation II) |
| Rated power | 65kw/2400rpm | |
| Rated torque | 285N.m/1600-1800rmp | |
| Drive train | Transmission type | Countershaft powershift |
| Shift Type | Fixed shaft hydraulic shift spur gear | |
| Pressure of transmission | 1.1-1.5MPa | |
| Gear | 2F/2R | |
| Torque converter | Single-stage,single turbine ,3 element | |
| Torque ratio | 3.13 | |
| Main reducer | Spiral bevel gear single-stage reduction | |
| Final reducer | Planetary reduction | |
| Tire | 16/70-20 | |
| Travel spped -forward | 8/20km/h | |
| Travel spped -reverse | 8/20km/h | |
| Brake system | Service brake | Air drive ,four wheel brake (dry) |
| Setting pressure | 0.78MPa | |
| Parking brake | Flexible shaft controlled caliper | |
| Steering system | Type | Hydaulic load sensor system |
| Steering pump | Shared with working pump | |
| System pressure | 14MPa | |
| Steering angle | ±30° | |
| Hydarulic system | Type | Pilot Control |
| Working pump | Gear pump | |
| Flow rate | 120L/min.2400 rpm | |
| Control valve | 2 Spool | |
| System pressure | 16MPa | |
| Cycle time (sec) | 8.2 | |
| Electric system | System voltage | 2.4V |
| Battery (2 in series ) | 2*90Ah | |
| Service refill capacity | Fuel tank | 90L |
| Hydraulic tank | 65L | |
| Transmission type | 19L | |
| Front axle/ rear axle | 24L | |
| OPTIONAL |
| Bucket (1.2M3 ,width 2.1m, 3 Piece cutting edges ) |
| Bucket (1.2m3, width 2.1m, Five detachable teeths ) |
| 3rd spool for auxiliary function |
| Hydraulic quick hitch |
| Quick hitch bucket (3 piece cutting edges ) |
| Quick hitch log fork |
| Mechanical quick hitch |
| Copper slag grapple |
| Log fork |
| Warm air blower |
