Lonking CDM856 wheel loader 5TON with Weichai WP10G220E341 ZF transmission

I'm Online Chat Now

Lonking CDM856 wheel loader 5TON with Weichai WP10G220E341 ZF transmission

China Lonking CDM856 wheel loader 5TON with Weichai WP10G220E341 ZF  transmission supplier
Lonking CDM856 wheel loader 5TON with Weichai WP10G220E341 ZF  transmission supplier Lonking CDM856 wheel loader 5TON with Weichai WP10G220E341 ZF  transmission supplier Lonking CDM856 wheel loader 5TON with Weichai WP10G220E341 ZF  transmission supplier Lonking CDM856 wheel loader 5TON with Weichai WP10G220E341 ZF  transmission supplier

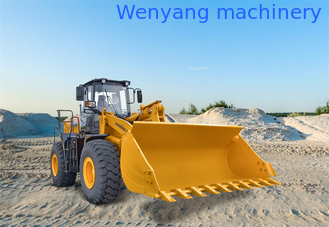

Large Image :  Lonking CDM856 wheel loader 5TON with Weichai WP10G220E341 ZF transmission

Product Details:

Place of Origin: China
Brand Name: Lonking
Certification: ISO 9001-2008
Model Number: CDM856

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: 1 unit /40HQ
Delivery Time: 20 days after receiving deposit
Contact Now
Detailed Product Description
Rated Capacity: 5TON Operating Weight: 17300kg
Bucket Capacity: 3m3 Engine: Weichai
Engine Model: WP10G220E341 Engine Power: 162kW/2200rpm
Trasmission: ZF Shift Type: Electronic Powershift Control

Lonking CDM856 wheel loader 5TON with Weichai WP10G220E341 ZF transmission



Top Brand Wheel Loader Manufacturer


200,000 Units More Working Worldwide



Pay Loader, Chinese Pay Loader, Chinese Wheel Loader, Chinese 3T Wheel Loader, Chinese 5T Wheel Loader,
Chinese Large Wheel Loader, Chinese Small Wheel Loader, 1T-2.3T wheel loader

Cummins Engines and ZF Transmission & Axles
Pilot Control System, Automatic Leveling
Complete line of applications and accessories
Easy maintenance & Outstanding After-sales
Top brand quality, reliable and save 20% plus

Construction Machinery CDM856(Weichai Tier 2) features:

POWERFUL WEICHAI ENGINE

LONKING TRANSMISSION

LONKING AXLES
JOYSTICK CONTROL
AC+ROPS&FOPS CABIN
VARIETY WITH ATTACHMENT
CONVENIENT MAINTENANCE

RATED POWER:162kW/2200rpm
BUCKET CAPACITY:3.0m³
RATED PAYLOAD:5000kg
OPERATING WEIGHT:17300kg



CONFIGURATION
WEICHAI Engine
ZF Transmission
Electronic powershift control
Lonking axles
Joystick control (2 spool)
Automatic Leveling
standard lift & bucket 3m3
ROPS* FOPS cabin
Air conditioner
Radio & MP3
LCD display
TECHNICAL PARAMETERS
Basic Bucket capcity 3m3
Rated payload 5000kg
Operating weight 17300±300kg
Traction force 155±3kN
Breakout force 170±3kN
L*W*H 8200*3010*3380mm
Engine Manufacturer/Model WEICHAI /WP10G220E341
Emission Standard National III
Engine type 4 stroke ,turbocharged & inter-cooled, direct injection , diesel engine
Rated power 162kw(220HP)/2200rpm
Rated torque 860N.m/1400rmp-1600rpm
Bore * Stroke (mm) 126*130mm
No.of cylinders /Displacement 6/9.726L
Air cleaner Three stage air cleaner with cyclone pre-cleaner
Alternator 70Amp
Baterry 2-24V/120Ah
Starting motor 24V/7.5kW
  Heating capacity 5000W
  Cooling capacity 4700W
Drive train Transmission type Countershaft powershift
Shift Type Electronic powershift control
Pressure of transmission 1.6-1.8MPa
Torque converter Single-stage & turbine ,3 element
Torque ratio 2.5
Axles Rigid (front)& Oscillating (Rear)
Rear axle Oscillation (°) ±10°
Differential Conventional
Main reducer Spiral bevel gear 1-stage reduction
Final reducer Planetary reduction
Tire 23.5-25L-3 16PR TT
Travel spped -forward 6.8/13/23/36km/h
Travel spped -reverse 6.8/13/23km/h
Brake system Service brake Single circuit caliper ,dry brake
Setting pressure 0.70-0.78MPa
Parking brake Hydarulic actuated drum brake
Emergency brake Hydarulic actuated drum brake
Steering system Type Hydaulic load sensor system
Pump gear pump 176L/min 2200rpm
System pressure 15MPa
Steering angle ±35°
cylinder type double acting
cylinder bore*stroke 2-100*324mm
Hydarulic system Type Joystick control (single lever)
Pump gear pump 220L/min .2200rpm
Control valve 2 Spool (bucket & boom )
System pressure 16MPa
cylinder No bore * stroke (lift cylinder ) 2-180*721mm
cylinder No bore * stroke (tilt cylinder ) 1-200*563mm
joystick control presure 2.5Mpa
Service refill capacity Fuel tank 285L
Hydraulic tank 270/275(3rd spool)
Crankshaft 20L
Transmission type 30L
Front axle/ rear axle 28L



OPTIONAL
Oil bath air filter
radial tire
Pressure testing connector
3rdspool for Auxiliary function
sliding cabin window
electric heating rear window
lockable oil tank cap
rear view camera
Rock bucket 3m3
enlarged bucket 3.5m3
coal bucket 4.2m3
bucket (3 pieces cutting edges )
log grapple
grass grapple
side tip bucket
log fork
quick hitch bucket
4 in 1 bucket (quick hitch only )
Side tip bucket 2.5m3
snow blade (quick hitch only )
Cold starting (-35°C)

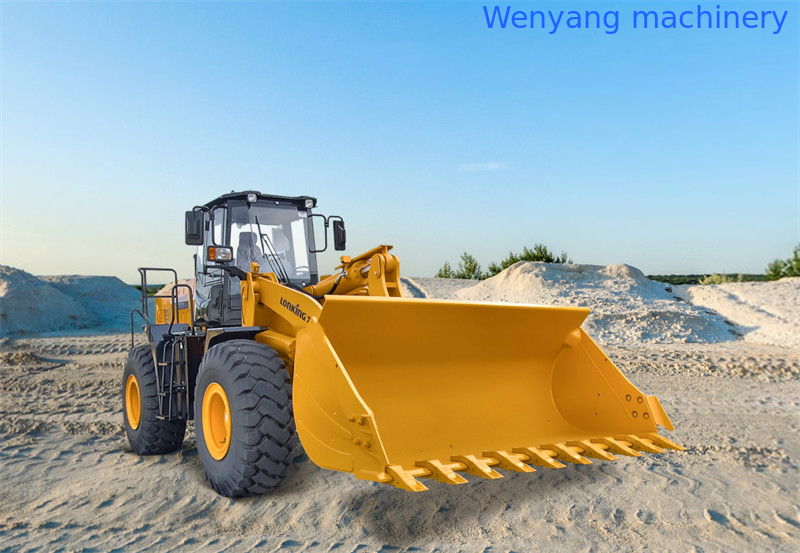

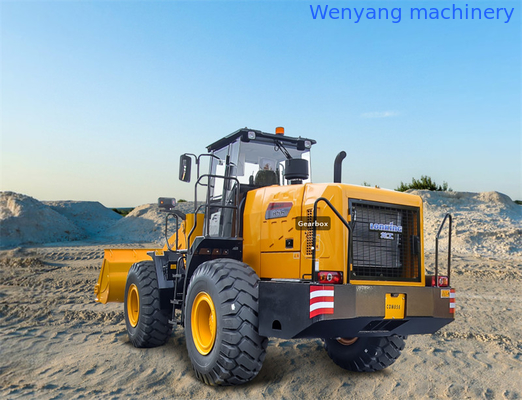

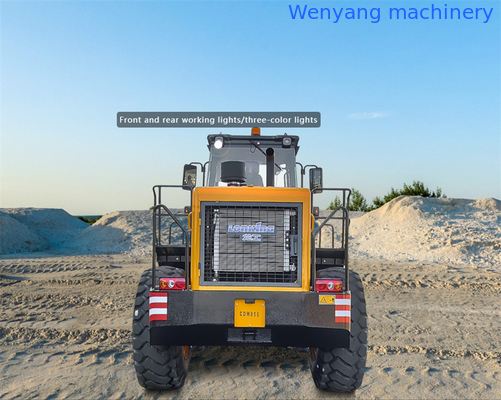

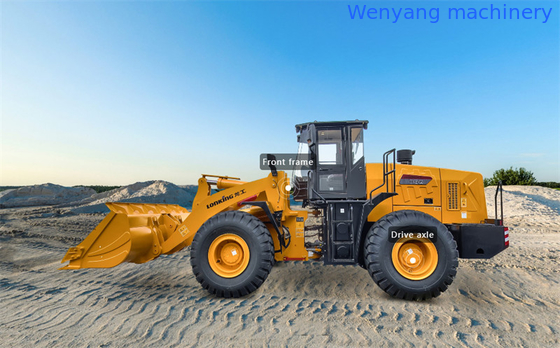

Lonking CDM856 wheel loader 5TON with Weichai WP10G220E341 ZF  transmission
