Lonking CDM835 payloader 3500kg 1.8m3 with WEICHAI engine WP6G140E22 105KW

I'm Online Chat Now

Lonking CDM835 payloader 3500kg 1.8m3 with WEICHAI engine WP6G140E22 105KW

China Lonking CDM835 payloader 3500kg 1.8m3 with WEICHAI engine WP6G140E22 105KW supplier
Lonking CDM835 payloader 3500kg 1.8m3 with WEICHAI engine WP6G140E22 105KW supplier Lonking CDM835 payloader 3500kg 1.8m3 with WEICHAI engine WP6G140E22 105KW supplier Lonking CDM835 payloader 3500kg 1.8m3 with WEICHAI engine WP6G140E22 105KW supplier Lonking CDM835 payloader 3500kg 1.8m3 with WEICHAI engine WP6G140E22 105KW supplier Lonking CDM835 payloader 3500kg 1.8m3 with WEICHAI engine WP6G140E22 105KW supplier

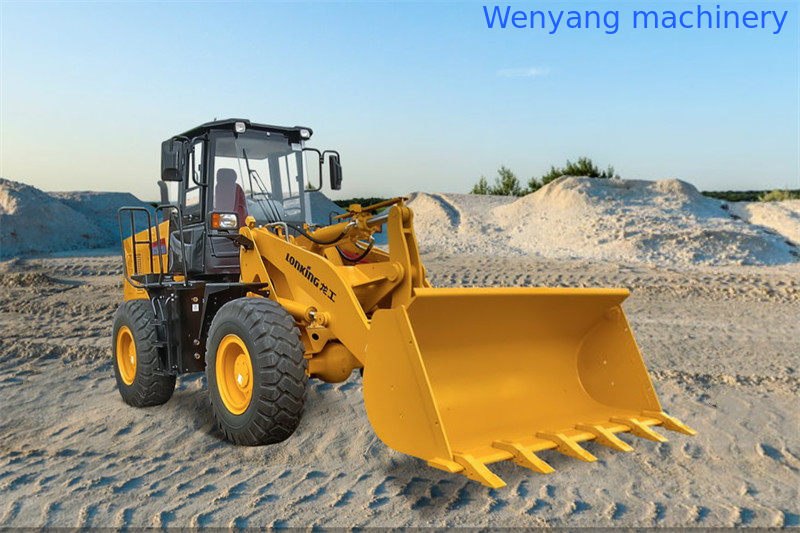

Large Image :  Lonking CDM835 payloader 3500kg 1.8m3 with WEICHAI engine WP6G140E22 105KW

Product Details:

Place of Origin: China
Brand Name: Lonking
Certification: ISO 9001-2008
Model Number: CDM835

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: 1 unit /40HQ
Delivery Time: 20 days after receiving deposit
Contact Now
Detailed Product Description
Rated Capacity: 3.5TON Operating Weight: 11620kg
Bucket Capacity: 1.8m3 Engine: Weichai
Engine Model: WP6G140E22 Engine Power: 105kW/2200rpm
Hydraulic System Type: Joystick Control (single Lever )

Lonking CDM835 payloader 3500kg 1.8m3 with WEICHAI engine WP6G140E22 105KW



Top Brand Wheel Loader Manufacturer


200,000 Units More Working Worldwide



Pay Loader, Chinese Pay Loader, Chinese Wheel Loader, Chinese 3T Wheel Loader, Chinese 5T Wheel Loader,
Chinese Large Wheel Loader, Chinese Small Wheel Loader, 1T-2.3T wheel loader

Cummins Engines and ZF Transmission & Axles
Pilot Control System, Automatic Leveling
Complete line of applications and accessories
Easy maintenance & Outstanding After-sales
Top brand quality, reliable and save 20% plus



Construction Machinery CDM835(Weichai Tier 2) features:

POWERFUL WEICHAI DEUTZ ENGINELONKING TRANSMISSION
LONKING AXLES
JOYSTICK CONTROL
AC+ROPS&FOPS CABIN
VARIETY WITH ATTACHMENT
CONVENIENT MAINTENANCE

RATED POWER:105kW/2200rpm
BUCKET CAPACITY:1.8m³
RATED PAYLOAD:3500kg
OPERATING WEIGHT:11620kg





TECHNICAL PARAMETERS
Basic Bucket capcity 1.8m3
Rated payload 3500kg
Operating weight 11620±300kg
Traction force 106±3kN
Breakout force 103±3kN
L*W*H 7520*2500*3180mm
Engine Manufacturer/Model WEICHAI /WP6G140E22
Rated power 105kw/2200rpm
Rated torque 580N.m/1400-1600rmp
Bore * Stroke (mm) 105*130mm
No.of cylinders /Displacement 6/6.75L
Air cleaner Three stage air cleaner
Alternator 70Amp
Baterry 2-24V/105Ah
Starting motor 24V/6kW
Drive train Transmission type Countershaft powershift
Shift Type Mechanical powershift control
Pressure of transmission 1.1-1.5MPa
Torque converter Single-stage & turbine ,3 element
Axles Rigid (front)& Oscillating (Rear)
Rear axle Oscillation (°) ±10°
Differential Conventional
Main reducer Spiral bevel gear 1-stage reduction
Final reducer Planetary reduction
Tire 17.5-25L-3 12PR TT
Travel spped -forward 6.5/12/32km/h
Travel spped -reverse 6.8/12.5/33.5km/h
Brake system Service brake Single circuit caliper ,dry brake
Setting pressure 0.70-0.78MPa
Parking brake Flexible shaft controlled
Emergency brake Caliper brake
Steering system Type Hydaulic load sensor system
Pump 246L/min 2200rpm
Steering pump Shared with working pump
System pressure 14MPa
Steering angle ±35°
Hydarulic system Type Joystick control (single lever)
Pump 246L/min 2200rpm
Control valve 2 Spool
System pressure 16MPa
Cycle time (sec) 10.5
Service refill capacity Fuel tank 200L
Hydraulic tank 173/178(3rd spool)
Transmission type 17L
Front axle/ rear axle 18.5L
Model CDM835 (Weichai)
Bucket Capacity(m³) 1.8-2.5
Rated Payload (kg) 3500
Rated Power(kw/rpm) 105/2200
Operating Weight (kg) 11620
Traction Force(kN) 106
Breakout Force (kN) 103
Dump Clearance at Max.Lift(mm) 2806
STANDARD EQUIPMENT
WEICHAI Engine Single-lever(Joystick) Control
LONKING Transmission Standard Lift&Bucket (1.8m³)
Electronic Powershift Control ROPS&FOPS Cabin
LONKING Axles Air Conditioner
Flexible Shaft Controlled Caliper Brake(Parking Brake) Radio&MP3
  LCD Display

OPTIONAL EQUIPMENT
Cold Starting (-35℃) Quick-change Bucket(1.7m³)
Oil-bath Air Filter Bucket 1(2.0m³)
17.5R25 ★★ L-3 TL Enlarged Bucket(2.3m³)
3rd Spool for Auxiliary Function Coal Bucket(2.5m³)
Double-lever(Joystick) Control for Lift&Tilt&Auxiliary Function 3 Piece Cutting Edge,Bolt-on Type Bucket
Sliding Cabin Window Log Fork
Electric Heating Rear Window Grasping Pitchfork
Lockable Oil Tank Cap Side Dump Bucket
Rear View Camera Fork(Quick-change Only)
Pressure Testing Connector 4in1 Bucket(Quick-change Only)
High Lift &Additional Counterweight Snow Blade(Quick-change Only)
Quick-change Coupler Mechanical Powershift Control
