Product Details:
Payment & Shipping Terms:
|
| Rated Load: | 10T | Load Center Distance: | 8000mm |
|---|---|---|---|
| Engine: | YTO Engine |

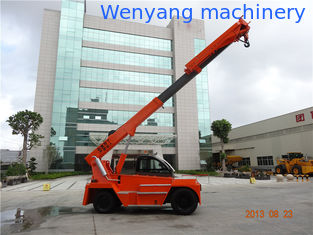

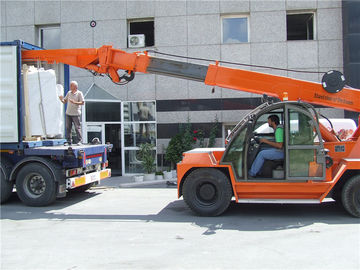

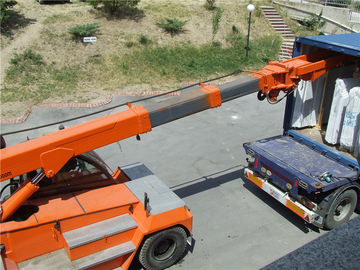

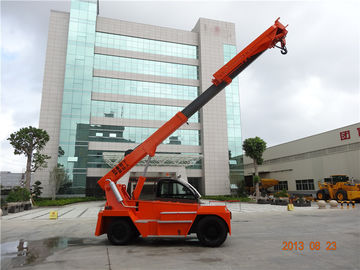

10ton telehandler for marble sale loading and unloading at factory or port
Engine: China standard ,low oil consumption,high quality turbocharged engine,good power performance,,big torque reserves,has strong power,energy conservation and environmental friendly
Steering axle:Adopt transverse oil cylinder type steering bridge,full hydraulic steering,flexible and light ,reliable
Transmission: Transmission & Torque convert: Imported technology, reliable performance, convenient maintenance, smooth transmission, convenient operation Control system:Sense steering to make the work efficiency and reduce driver’s labor intensity
Pipeline: High pressure oil line, impart resistance ,wear resistance and long service life
Tyre: Sino-us joint brand, resistant to wear and sting ,high strength tires, bear heavy loaded-safe and reliable
Cab: Damping luxury cab with sunroof, wide view and comfortable seats, flexible control
Technical parameters:
| Configuration | Model | WY1100 | Unit | |
| Rated load | 10,000 | Kg | ||
| Overall dimensions | 5110×2200×2400 | mm | ||
| Dead weight | 13000 | Kg | ||
| Min. turning radius | ＜4300 | mm | ||
| Max speed | 25 | Km/h | ||
| Brake system | Gas pushed oil disc brake | |||
| Tyre | Front | 9.00-20PR-14PR | ||
| Rear | 9.00-16PR-14PR | |||
| wheel tread | Front | 1600 | mm | |
| Rear | 1650 | mm | ||
| Wheel base | 3050 | mm | ||
| Min. Ground clearance | 250 | mm | ||
| Engine | Model YTO 4A3Z-22 | China | ||
| Rated Power | 66.2 | Kw | ||
| Max torque | 335/1500 |
N.m/ rpm
|
||
Note: We’ll reserve the rights not to inform if there is any improvement on the
products or change on the specifications.
