|Name:||Telescopic Forklift||Available:||Lifting Equipment|
|Rated Load:||2.5ton||Optional:||Quick Coupling|
|Engine Power:||76kw||Max Lifting Height:||5200mm|

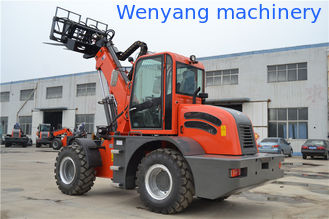

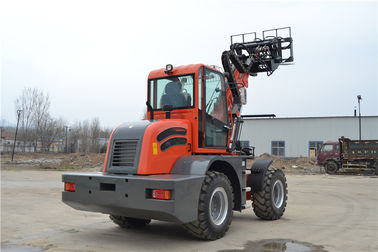

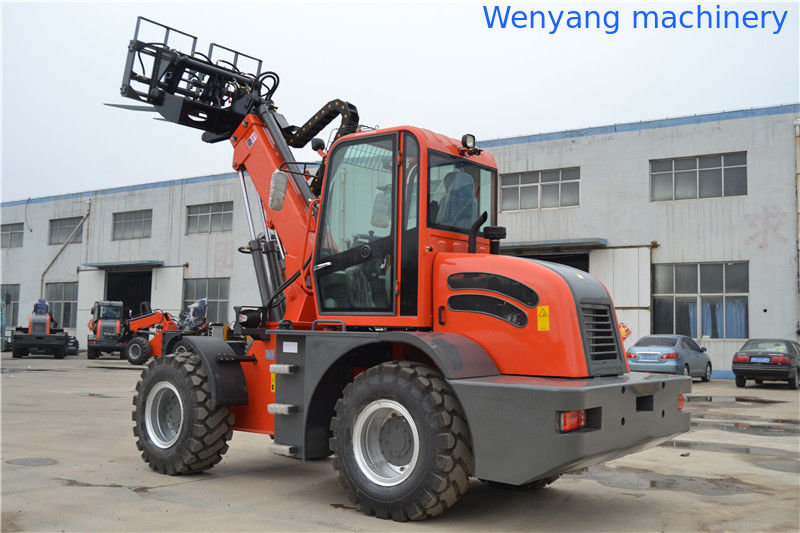

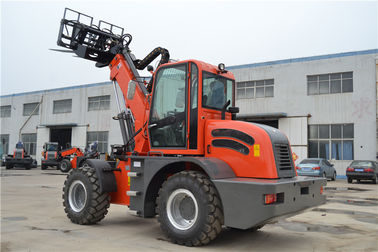

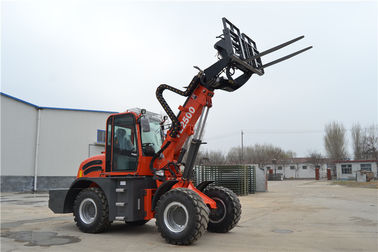

WY2500 recycle metal scrap lifting equipment 2.5ton telescopic forklift
1.The telescopic boom which can reach 5.2m greatly increase it’s working scope.
2.The articulated structure and axle transmission design makes it powerful and has better pass through ability.
3.The seals, valve & joystick handle are famous oversea products which guarantee that it’s a reliable long lasting machine.
4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.
5.Wide view cabin and two entrance makes the operating convenient and safe.
6.Quick coupling system, hydraulic joystick and buttons makes the operating easy and convenient.
7.The rear cover can be opened as a whole part just by your hands, which makes the maintenance much more simple.
|1.0 Engine Details|
|(1) Model:||YUNNEI Engine|
|(2) Engine ne||In-line arrangement, water-cooled, four-cycle diesel Engine|
|(3) Rated Power||76KW|
|(4) Rated Speed||2400 r/p.min (rpm)|
|(5)Optional Engine||YUCHAI engine(78KW),CUMMINS engine(74.5KW)|
|2.0 Transmission System|
|Hydraulic converter + gearbox+drive shaft + hub reduction axles|
|(1) Bucket Capacity||1.3m3|
|(2) Bucket width||2200mm|
|(3) Bucket type||Heavy-duty bolt on teeth|
|(5) Rated Load||2500kg including bucket or attachment|
|4.0 Overall Dimensions|
|(1) Overall Length||6800mm|
|(2) Overall Height||2900mm|
|(3) Overall Width||2200mm|
|(4) Max. lifting Height||5700mm|
|(5) Lifting to bucket hinge pin Height||5200mm|
|(6) Bucket Unloading Height||4500mm|
|(7) Unloading Distance||2000mm(Arm extended)|
|5.0 Operating Specifications|
|(1) Steering System:||Articulated Frame with hydraulic power steering|
|(2) Min Turning Radius:||4700mm(The right front wheel)|
|Min Turning Radius:||2400mm(The left rear wheel)|
|(3) Driving System: Hydraulic converter, four wheel drive|
|(4) European quick coupling system|
|(5) Hydraulic joystick control.|
|6.0 Brake System|
|(1) Service Brake||Safer air assist disc brake braking system|
|(2) Parking Brake||Hand operated(Disc brakes)|
|System pressure||20Mpa; Hydraulic output:96L/min|
