recycling scrap transportation machinery telescopic loader with grapple

China recycling scrap transportation machinery telescopic loader with grapple supplier
recycling scrap transportation machinery telescopic loader with grapple supplier recycling scrap transportation machinery telescopic loader with grapple supplier recycling scrap transportation machinery telescopic loader with grapple supplier recycling scrap transportation machinery telescopic loader with grapple supplier

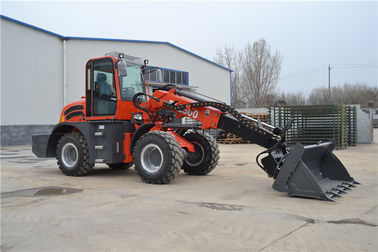

Large Image :  recycling scrap transportation machinery telescopic loader with grapple

Product Details:

Place of Origin: China
Brand Name: Wenyang Machinery
Certification: ISO ,CE
Model Number: WY2500

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 10000 USD/SET -20000 USD /SET
Packaging Details: Ruded cargo by container
Delivery Time: 20 daus
Payment Terms: T/T
Supply Ability: 800 SETS/YEAR
Contact Now
Detailed Product Description
Name: Telescopic Forklift Available: Transportation Equipment
Rated Load: 2.5ton Optional: Grapple
Engine Power: 76kw Max Lifting Height: 5200mm
Driven Form: 4WD

recycling scrap transportation machinery telescopic loader with grapple



Features:



1.The telescopic boom which can reach 5.2m greatly increase it’s working scope.



2.The articulated structure and axle transmission design makes it powerful and has better pass through ability.



3.The seals, valve & joystick handle are famous oversea products which guarantee that it’s a reliable long lasting machine.



4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.



5.Wide view cabin and two entrance makes the operating convenient and safe.



6.Quick coupling system, hydraulic joystick and buttons makes the operating easy and convenient.

7.The rear cover can be opened as a whole part just by your hands, which makes the maintenance much more simple.

1.0 Engine Details
(1) Model: YUNNEI Engine
(2) Engine ne In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power 76KW
(4) Rated Speed 2400 r/p.min (rpm)
(5)Optional Engine YUCHAI engine(78KW),CUMMINS engine(74.5KW)
2.0 Transmission System
Hydraulic converter + gearbox+drive shaft + hub reduction axles
3.0 Bucket
(1) Bucket Capacity 1.3m3
(2) Bucket width 2200mm
(3) Bucket type Heavy-duty bolt on teeth
(5) Rated Load 2500kg including bucket or attachment
4.0 Overall Dimensions
(1) Overall Length 6800mm
(2) Overall Height 2900mm
(3) Overall Width 2200mm
(4) Max. lifting Height 5700mm
(5) Lifting to bucket hinge pin Height 5200mm
(6) Bucket Unloading Height 4500mm
(7) Unloading Distance 2000mm(Arm extended)
1200mm(Arms recovered)
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4700mm(The right front wheel)
Min Turning Radius: 2400mm(The left rear wheel)
(3) Driving System: Hydraulic converter, four wheel drive
(4) European quick coupling system
(5) Hydraulic joystick control.
6.0 Brake System
(1) Service Brake Safer air assist disc brake braking system
(2) Parking Brake Hand operated(Disc brakes)
7.0 Tire
(1) Model: 16/70-24
(2): Width 410mm
(3) Diameter 1075mm
8.0 Wheelbase 2550mm
9.0 Track 1700mm
System pressure 20Mpa; Hydraulic output:96L/min
Machine weight 6900KG

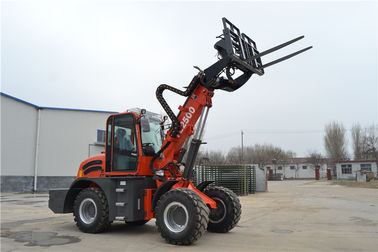

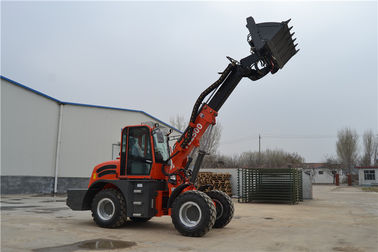

recycling scrap transportation machinery telescopic loader with grapple

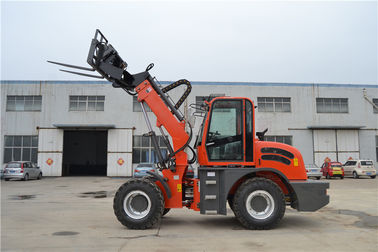

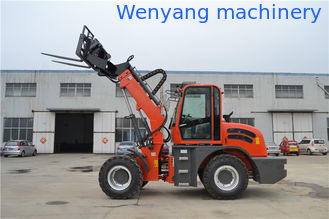

recycling scrap transportation machinery telescopic loader with grapple

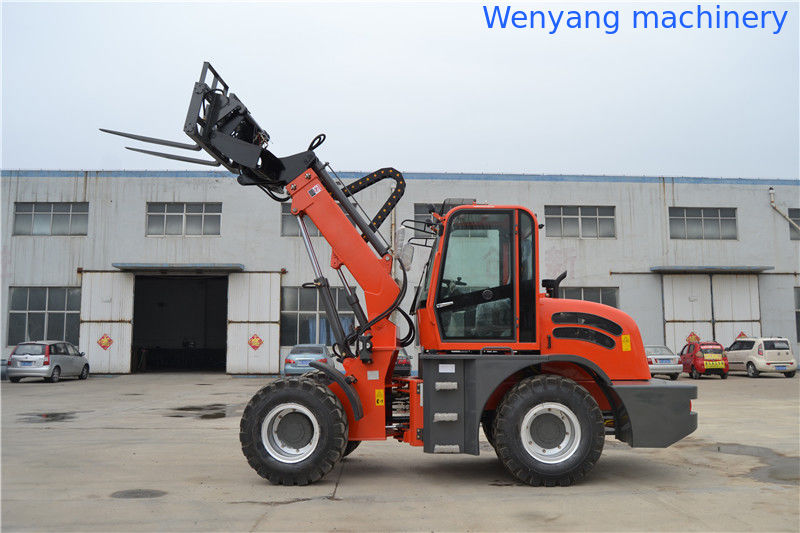

recycling scrap transportation machinery telescopic loader with grapple
