10ton crane telehandler for marble slab loading and unloading from 20GP container

China 10ton crane telehandler for  marble slab loading and unloading from 20GP container supplier
10ton crane telehandler for  marble slab loading and unloading from 20GP container supplier 10ton crane telehandler for  marble slab loading and unloading from 20GP container supplier 10ton crane telehandler for  marble slab loading and unloading from 20GP container supplier 10ton crane telehandler for  marble slab loading and unloading from 20GP container supplier

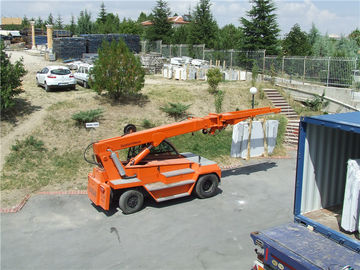

Large Image :  10ton crane telehandler for marble slab loading and unloading from 20GP container

Product Details:

Place of Origin: China
Brand Name: Wenyang Machinery
Certification: ISO9001 CE
Model Number: WY1100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 1 month
Payment Terms: T/T
Supply Ability: 800sets/year
Contact Now
Detailed Product Description
Rated Load: 10T Load Center Distance: 8000mm
Engine: YTO Engine

10ton crame telehandler for marble slab loading and unloading from 20GP container



Engine: China standard ,low oil consumption,high quality turbocharged engine,good power performance,,big torque reserves,has strong power,energy conservation and environmental friendly

Steering axle:Adopt transverse oil cylinder type steering bridge,full hydraulic steering,flexible and light ,reliable

Transmission: Transmission & Torque convert: Imported technology, reliable performance, convenient maintenance, smooth transmission, convenient operation Control system:Sense steering to make the work efficiency and reduce driver’s labor intensity

Pipeline: High pressure oil line, impart resistance ,wear resistance and long service life

Tyre: Sino-us joint brand, resistant to wear and sting ,high strength tires, bear heavy loaded-safe and reliable

Cab: Damping luxury cab with sunroof, wide view and comfortable seats, flexible control

Technical parameters:

Configuration Model WY1100 Unit
  Rated load 10,000 Kg
Overall dimensions 5110×2200×2400 mm
Dead weight 13000 Kg
Min. turning radius <4300 mm
Max speed 25 Km/h
Brake system Gas pushed oil disc brake

Tyre Front 9.00-20PR-14PR
Rear 9.00-16PR-14PR
wheel tread Front 1600 mm
Rear 1650 mm
Wheel base 3050 mm
Min. Ground clearance 250 mm

Engine Model YTO 4A3Z-22 China
Rated Power 66.2 Kw
Max torque 335/1500

N.m/ rpm





Note: We’ll reserve the rights not to inform if there is any improvement on the

products or change on the specifications.



10ton crane telehandler for  marble slab loading and unloading from 20GP container

10ton crane telehandler for  marble slab loading and unloading from 20GP container
