small wheel loader with 4 in 1 bucket , pallet fork , log/grass grapple , hammer breaker

China small wheel loader with 4 in 1 bucket , pallet fork , log/grass grapple , hammer breaker supplier

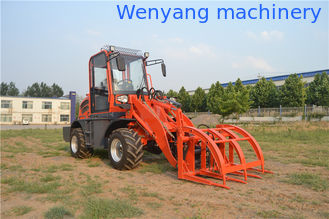

Large Image :  small wheel loader with 4 in 1 bucket , pallet fork , log/grass grapple , hammer breaker

Product Details:

Place of Origin: China
Brand Name: Wenyang machinery
Certification: CE,SGS, ISO9001:2008
Model Number: WY15F

Payment & Shipping Terms:

Minimum Order Quantity: 1 uints
Packaging Details: 20GP container or 40HQ
Delivery Time: within 20 days after receiving deposit
Supply Ability: 800 units per year
Contact Now
Detailed Product Description
Rated Load: 1.5TON Bucket Capacity: 0.7m3
Engine Brand: Chinese Brand Yunnei Or Xinchai Engine Power: 37KW
Drive Model: Four Wheel Drive Operation: Joystick
Dumping Height: 2900mm

small wheel loader with 4 in 1 bucket , pallet fork , log/grass grapple , hammer breaker





small wheel loader with 4 in 1 bucket , pallet fork , log/grass grapple , hammer breaker

Bucket Capacity(m³) 0.7
Operating Weight(kg) 3500
Bucket Width(mm) 1750
Rated Load(kg) 1500
Driving Mode Four-wheel drive
Overall Dimensions (mm)(L*W*H) 4900x1750x2790
Max. Breakout Force(KN) 32
Forward Speed 1st(km/h) 0-12
Forward Speed 2nd(km/h) 0-25
Reverse Speed (km/h) 0-25
Max. Dumping Height(mm) 2650
Optional Max. Dumping Height(mm) 2900
Max. Dumping Reach (mm) 850
Min. Turning Radius(mm) 3890
Full Bucket Lifting Time (s) 4.5
Total Hydraulic Cycle Time (s) 9
Tread Width (mm) 220
Wheel Base (mm) 1580
Min. Clearance Over Ground (mm) 230
MAX. Tilt Angel(°) 30
Diesel Engine Brand Yunnei Engine
  Optional brand

Euro3 and EPA Xinchai Engine

Yanmar/Perkins/Kubota/Cummins/Kohler EPA engine

  Type

In-line arrangement,Four-stroke,Water cooled,

4-cylinder diesel engine

  Rated Output(KW) 37
  Engine starting mode Electric
Transmission Type Fixed-spindle power shift with converter
Drive axle Type Isuzu drive axle
  Rear Axle Oscillation Center oscillation
  Oscillating Angle Of Rear Axle 13°
Tire Model 14/90-16
  Optional model

20.5-16 or 12-16.5 or 14-17.5 wider tire

31*15.5-15 Agriculture tire

295/80R22.5 or 315/80R22.5 Truck tire

Steering System Working Pressure (MPa) 10
  Max. Steering Angle (°) 35
Working Hydraulic System Pressure Of Tire (MPa) 2.5-3.5
  Working Pump Type Gear pump
  Working Pressure (MPa) 16
Brake System Service Brake Four Wheel Hydraulic spead-shoed brake
  Parking Brake Hand operated with disc brake
