China made 5ton 4WD Cummins engine 93KW joystick telescopic boom forklift telehandler

I'm Online Chat Now

China made 5ton 4WD Cummins engine 93KW joystick telescopic boom forklift telehandler

China China made 5ton 4WD Cummins engine 93KW joystick  telescopic boom forklift telehandler supplier

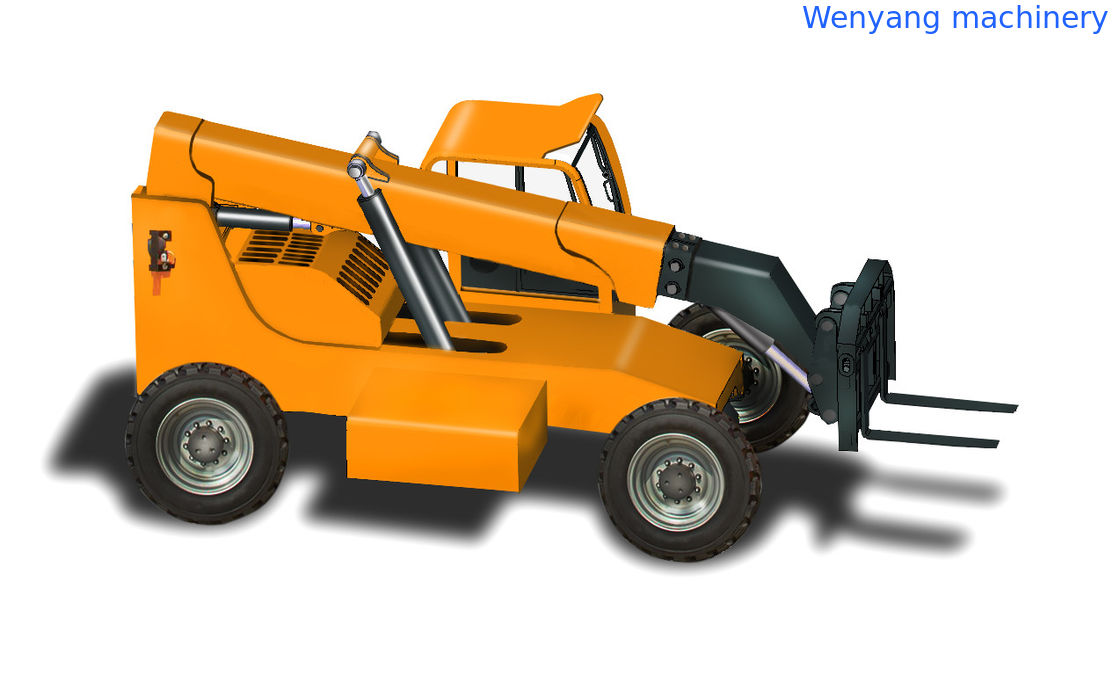

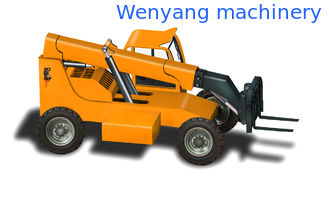

Large Image :  China made 5ton 4WD Cummins engine 93KW joystick telescopic boom forklift telehandler

Product Details:

Place of Origin: China
Brand Name: Wenyang Machinery
Certification: ISO9001
Model Number: WY45-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 1 month
Supply Ability: 800sets/year
Contact Now
Detailed Product Description
Rated Load: 5000kg Lifting Capacity To Full Height: 4100kg
Lifting Capacity At Full Reach: 3150kg Max.lifting Height: 8100mm
Max.forward Reach: 4500mm Engine: 4BTAA3.9-C125
Engine Power: 93kw

China made 5ton 4WD Cummins engine 93KW joystick telescopic boom forklift telehandler



WY50-4 telescopic forklift specification
Overall weight 13800kg
Max.rated load 5000kg
Lifting capacity to full height 4100kg
Lifting capacity at full reach 3150kg
Max.lifting height 8100mm
Max.forward reach 4500mm
Engine brand Cummins
Engine model 4BTAA3.9-C125
Engine power 93KW
Overall length 6400mm
Overall width 2400mm
Overall height 2700mm
Wheel base 3250mm
Tread 1970mm
Min ground clearance 400mm
Fork length 1200mm
Departure angle 36°
Max.traction (load-free) 52kN
Min,turing radius (tire lateral) 5100mm
Max. gradeability 25°
Travel speed I 10km/h
travel speed II 30km/h
