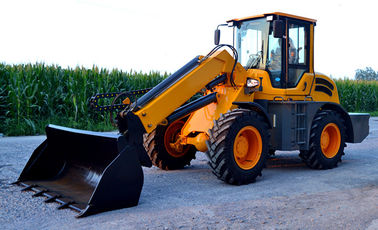

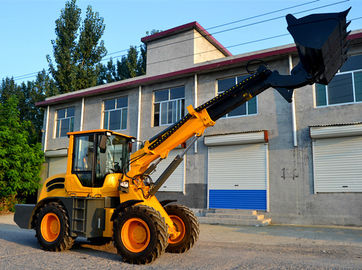

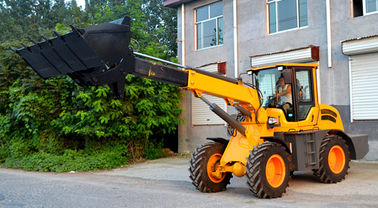

2.5ton 1.3m3 bucket telescopic boom wheel loader with max lifting height 6000mm

2.The articulated structure and axle transmission design makes it powerful and has bette

pass through ability.

3.The seals, valve & joystick handle are famous oversea products which guarantee that it’s

a reliable long lasting machine.

4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.

5.Wide view cabin and two entrance makes the operating convenient and safe.

6.Quick coupling system, mechanic joystick and buttons makes the operating easy and convenient.

7.The rear cover can be opened as a whole part just by your hands, which makes the maintenance

much more simple.

Specification:

1.0 Engine Details

(1) Model: YUNNEI Engine

(2) Engine Type:In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power:76KW

(4) Rated Speed:2400 r/p.min (rpm)

(5)Optional Engine:Cummins engine(75KW)

2.0 Transmission System

Hydraulic converter + gearbox+drive shaft + hub reduction axles

3.0 Bucket

(1) Bucket Capacity: 1-1.3m³

(2) Bucket width: 1800-2100mm

(3) Bucket type:Heavy-duty bolt on teeth

(5) Rated Load: 2000-2500kg including attachment

4.0 Overall Dimensions

(1) Overall Length: 7000mm

(2) Overall Height:3000mm

(3) Overall Width: 2100mm

(4) Max. lifting Height:6000mm

5.0 Operating Specifications

(1) Steering System: Articulated Frame with hydraulic power steering

(2) Min Turning Radius: 5600mm

(3) Driving System: Hydraulic converter, four wheel drive

(4) European quick coupling system

(5) Joystick control

6.0 Brake System

(1) Service Brake:Safer air assist disc brake braking system

(2) Parking Brake:Hand operated(Disc brakes)

7.0 Tire

(1) Model:16/70-24 (2)Width: 410mm(3) Diameter: 1075mm

8.0 Wheelbase: 2430mm

9.0 Track: 1470mm

10. 0 System pressure:20Mpa; Hydraulic output:96L/min

11.0 Overall weight: 7000KG
