Home ProductsTelescopic loader /forklift

WY3000 5.4m lifting height telescopic forklift with working platform

I'm Online Chat Now

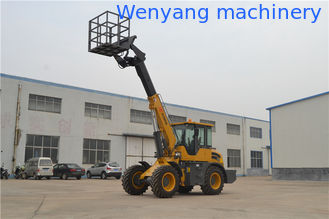

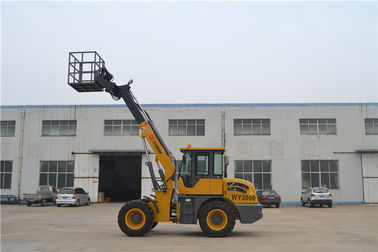

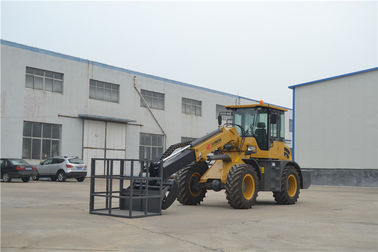

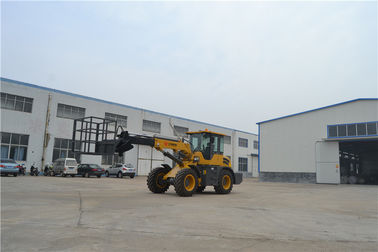

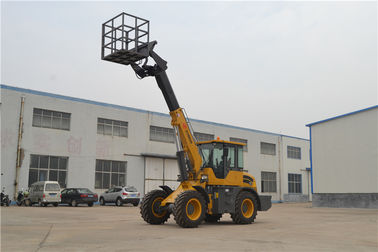

WY3000 5.4m lifting height telescopic forklift with working platform

China WY3000  5.4m lifting height telescopic forklift with working platform supplier
WY3000  5.4m lifting height telescopic forklift with working platform supplier WY3000  5.4m lifting height telescopic forklift with working platform supplier WY3000  5.4m lifting height telescopic forklift with working platform supplier WY3000  5.4m lifting height telescopic forklift with working platform supplier

Large Image :  WY3000 5.4m lifting height telescopic forklift with working platform

Product Details:

Place of Origin: China
Brand Name: Wenyang Machinery
Certification: ISO ,CE
Model Number: WY3000

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 10000-20000 USD/Set
Packaging Details: Rude cargo
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 800 sets/year
Contact Now
Detailed Product Description
Name: Telescopic Loader Attachment: Workign Platform
Available: Lifting Machinery Max Lifting Height: 5.4m

WY3000 5.4m lifting height telescopic forklift with working platform



Performance and characteristic



1. Equipped with YUNNEI engine, optional YUCHAI or CUMMINS engine.

2. High quality self-made hydraulic gearbox and driving axle.

3. Choose best hydraulic components, pilot operation, easy and durable.

4. Strong and durable frame, have the automatic flat function in high place.

5. (Quick change )option attachment:wooden fork, pipe fork, pallet fork, grass fork, rock bucket, bigger bucket, snow bucket, mixing bucket etc.

6. Optional luxurious meter, air conditioner, back camera, more comfortable for driving.

7. High pressure and safer air assist disc brake braking system

8. According to clients request, customize higher dumping and longer arm products.



Engine Model YUNNEI Engine
Engine Type In-line arrangement, water-cooled, four-cycle diesel,turbocharged Engine
Rated Power 92KW
Rated Speed 2400 r/p.min (rpm)
Optional Engine CUMMINS engine(74.5KW
2.0 Transmission System Hydraulic converter + gearbox+drive shaft + hub reduction axles
Bucket Capacity 1.5m³
Bucket width 2300mm
Bucket type Heavy-duty bolt on teeth
Rated Load 3000kg including attachment or bucket
Overall Length 6860mm
Overall Height 2860mm
Overall Width 2300mm
Max lifting height 5850mm
Lifting to bucket hinge pin Height 5400mm
Bucket Unloading Height 4650mm
Steering System: Articulated frame with hydraulic power steering
Min Turning Radius 5800mm
Driving System Hydraulic converter, four wheel drive
European quick coupling system
Joystick control
Brake System (1) Service Brake:Safer air assist disc brake braking system
(2) Parking Brake:Hand operated(Disc brakes)
Tire (1) Model:16/70-24 (2)Width: 410mm(3) Diameter: 1175mm
(2) Optional Model:17.5-25 (2)Width: 440mm (3)Diameter: 1280mm
Wheelbase 2430mm
Track 1700mm
.Operation weight :7100KG

WY3000  5.4m lifting height telescopic forklift with working platform

WY3000  5.4m lifting height telescopic forklift with working platform

WY3000  5.4m lifting height telescopic forklift with working platform
