Sell big capacity rought terrain mining machine 32T block handler equipment with 199KW engine

I'm Online Chat Now

Sell big capacity rought terrain mining machine 32T block handler equipment with 199KW engine

China Sell big capacity rought terrain mining machine 32T block handler equipment with 199KW engine supplier
Sell big capacity rought terrain mining machine 32T block handler equipment with 199KW engine supplier Sell big capacity rought terrain mining machine 32T block handler equipment with 199KW engine supplier Sell big capacity rought terrain mining machine 32T block handler equipment with 199KW engine supplier Sell big capacity rought terrain mining machine 32T block handler equipment with 199KW engine supplier

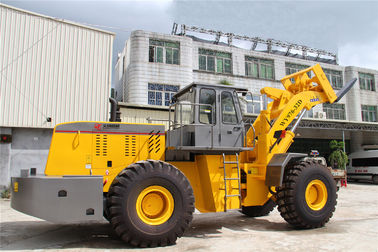

Large Image :  Sell big capacity rought terrain mining machine 32T block handler equipment with 199KW engine

Product Details:

Place of Origin: China
Brand Name: Wenyang machinery
Certification: ISO ,CE
Model Number: WY976-32D forklift loader

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: 1 units /1*40HQ Or by RORO
Delivery Time: 25 days
Supply Ability: 1000 units per year
Contact Now
Detailed Product Description
Condition: New Rated Load: 32T
Enegine Brand: Weichai Engine Power: 199KW
Dimension: 9615×3260×3680mm Fork Dimension: 1400×300×120mm

Sell big capacity rought terrain mining machine 32T block handler equipment with 199KW engine



Sell big capacity rought terrain mining machine 32T block handler equipment with 199KW engine

Sell big capacity rought terrain mining machine 32T block handler equipment with 199KW engine

Sell big capacity rought terrain mining machine 32T block handler equipment with 199KW engine

The performance introduction of whole machine:

Whole machine — Powerful and Compact. Equipped with professional air-condition, single handle pilot control system, electronic control gearshift device to ensure easy operation, Independent transmission oil and Hyd. Oil radiator improve the system stability.



Engine — Top-grade and fuel-efficient Diesel 199kw/h WEICHAI engine with multinomial patents, synthesize multilevel compound desert air filter technology, high efficiency, low noise and cooling technology, it can highlight high quality, stable and fuel-efficient advantage especially using in dusty environment.



Oil pipe—Oil-pipes for high-pressure position adopts high-value and durable PARKER pipe. More reliable and durable. It is one of spare parts which is nearly zero failure during three years.



Structure—Special material and design structure to fully improve the carrying capacity. Lift-arm increases the lower beam structure which to improve torsional ability, the operating weight reaches 33500kg and effectively improve the lateral stability of the whole machine. It is one of spare parts which is nearly zero failure during three years.



Transmission and torque converter—Adopt CAT technology fixed shaft power shift transmission system, compact structure, long service life of gear. Make the whole machine more flexible, special for the harsh quarries’ working environment, It is one of spare parts which is nearly zero failure during three years.



Fork— Bigger forks and fork arm carrier, special material and special forging technology forks, the width of fork reaches 300mm. Fork slope angle reaches 18 º, effectively solve the problem of unloading slope angle and taking out the fork when the height of the stacking goods reaches 2800 mm and height of loading reaches 1680 mm



Tires—Equipped with the strongest brand “ ADVANCE” 29.5R25 steel wire tires, the tread has good wear and puncture resistances. It is one of spare parts which is nearly zero failure during three years.



Specification
Description Specifications Unit
Rated power 199 kw
Overall dimension(L×W×H) 9615×3260×3680 mm
Max. lifting height Forks at lever 3135 mm
Take back fork 3515
Operating weight 33500 kg
Max. Limited Load 32000 kg
Bucket capacity 2.7 m3
Dimensions of fork (L×W×H) 1400×300×120 mm
Distance of fork ≤1330 mm
Rated loading capacity 32000 kg
Turning angle ±32° °
Maximum gradeability 30
Turning radius 8480 mm
Wheel base 4200 mm
Tread 2400 mm
Min. Ground clearance 450 mm
Dumping angle 18 °
Haul location height(Ground clearance of material) 300 mm
Fuel tank capacity 380 L
Hydraulic fuel tank capacity 380 L
Specification of tyre Front wheel 29.5R25 steel wire tire
Rear wheel 29.5R25 steel wire tire

Engine System
Model WEICHAI ------WD10G270E21
Rated power 199kw(270hp)
Type Top-grade Diesel WEICHAI engine, UUco-worker of German Deutz Company and AVL technology, AustriaUU; 6 Cylinders, Turbocharged Intercooled, with multinomial patents, UUsynthesize multilevel compound desert air filter technologyUU, high efficiency, low noise and cooling technology, especially using in dusty environment.
Rated speed 2200r/min
Max. torque 1000Nm
Total air displacement 220g/kw.h
Number of cylinders-stroke 6-Ф126×130
Fuel consumption 17L/H
