| Rated Operated: | 28000kg | Engine Brand: | Cummins |
|---|---|---|---|
| Engine Power: | 162KW | Dimension: | 6447x3725x3554mm |
| Moving Type: | Crawler Bulldozer | Condition: | New |

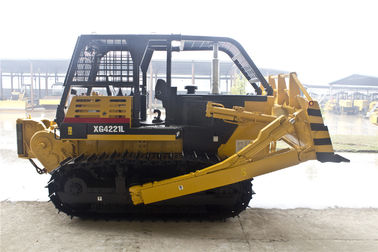

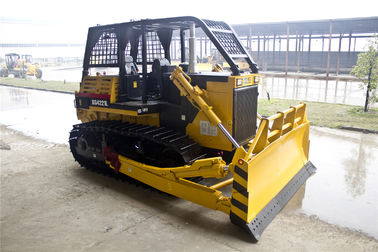

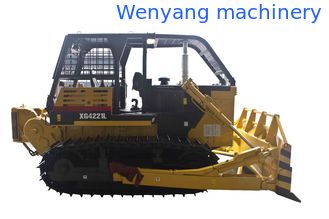

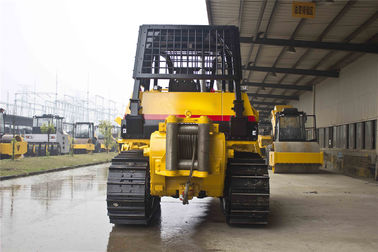

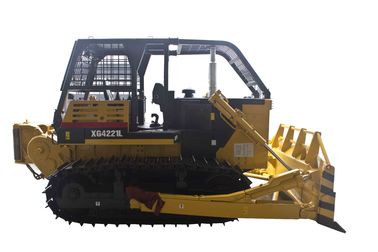

Chinese XG4221L forestry logging bulldozer with mechnical winch for Africa muddy woodland
Technical feature:
△Powerful, traction favorable, Cummins engine, high versatility
△ Adopt widened tracks, reducing ground biya of bulldozer, guaranteed the bulldozer good through,good traction
△ Using four o'clock elastic support console, operator comfort and good.
△ Comprehensive protection protective frame, protective frame extend to protect the front cover, the driver trilateral plus nets to prevent branches hurt driver , to ensure safety
△ Round protection hood, ensure adequate ventilation of the engine cooling system,meanwhile preventing mosquitoes, rotten leaves of tropical forests enter into the engine body.effect the work and heat dissipation of machine.
△ Blade fence effectively protect front of the machine is not being hurt
△ Mechanical winch is driven by a walking device through the output gearbox to drive the winch, the driving force, the inner tube rope maximum tension for 350kN, effectively improve work performance.
| Type | Item | Unit | XG4221L | ||
| Operating weight | kg | 28000 | |||
| Engine | Model | Cummins NT855-C280 | |||
| Rated speed | r/min | 1800 | |||
| Rated power | Kw | 162 | |||
| Traveling speed | Forward gear | I | Km/h | 0~3.6 | |
| II | Km/h | 0~6.5 | |||
| III | Km/h | 0~11.2 | |||
| Reserve gear | I | Km/h | 0~4.3 | ||
| II | Km/h | 0~7.7 | |||
| III | Km/h | 0~13.2 | |||
|
Dimension (Length*width*height) |
Mechanical winch | Mm | 6447x3725x3554 | ||
| Hydraulic winch | Mm | 5851x3725x3454 | |||
| Dozer device | Blade width | Mm | 3725 | ||
| Blade height | Mm | 1315 | |||
| The max tilting of blade | Mm | ＞735 | |||
| Single shovel capacity | M³ | 6.4 | |||
| Other performance | Minimum ground clearance | Mm | 405 | ||
| Track width | Mm | 610 | |||
| Total weight | Kg | 27500 | |||
| Ground pressure | Mpa | 0.077 | |||
| Min.turing radius | Mm | 3300 | |||
| Grade ability | ° | 30 | |||
| Productivity (theoretical value haul 40M) | M³/h | 330 | |||
| Mechanical winch | Model | TJM20 | |||
| Rope diameter x length | Mm x m | 28x70 | |||
| Roller Rally | KN | 350 | |||
| Rope working speed | m/min | 0-15.9 | |||
| Clutch form | Hydraulic separation combined type | ||||
| Weight | Kg | 3000 | |||
