Sell small capacity wheel loader with fork 1T, 1.6T,2T,2.5T,3T,3.5T,5T for different working condition

I'm Online Chat Now

Sell small capacity wheel loader with fork 1T, 1.6T,2T,2.5T,3T,3.5T,5T for different working condition

China Sell small capacity wheel loader with fork 1T, 1.6T,2T,2.5T,3T,3.5T,5T for different working condition supplier
Sell small capacity wheel loader with fork 1T, 1.6T,2T,2.5T,3T,3.5T,5T for different working condition supplier Sell small capacity wheel loader with fork 1T, 1.6T,2T,2.5T,3T,3.5T,5T for different working condition supplier Sell small capacity wheel loader with fork 1T, 1.6T,2T,2.5T,3T,3.5T,5T for different working condition supplier Sell small capacity wheel loader with fork 1T, 1.6T,2T,2.5T,3T,3.5T,5T for different working condition supplier

Large Image :  Sell small capacity wheel loader with fork 1T, 1.6T,2T,2.5T,3T,3.5T,5T for different working condition

Product Details:

Place of Origin: China
Brand Name: Wenyang machinery
Certification: ISO ,CE
Model Number: 1T, 1.6T,2T,2.5T,3T,3.5T,5T

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: 1 units /1*40HQ Or by RORO
Delivery Time: 25 days
Supply Ability: 1000 units per year
Contact Now
Detailed Product Description
Condition: New Rated Load: 27T
Enegine Brand: Weichai Engine Power: 178KW
Dimension: 9000×2990×3650mm Fork Dimension: 1400×250×110mm

Sell small capacity wheel loader with fork 1T, 1.6T,2T,2.5T,3T,3.5T,5T for different working condition



Sell small capacity wheel loader with fork 1T, 1.6T,2T,2.5T,3T,3.5T,5T for different working condition

Sell small capacity wheel loader with fork 1T, 1.6T,2T,2.5T,3T,3.5T,5T for different working condition

Sell small capacity wheel loader with fork 1T, 1.6T,2T,2.5T,3T,3.5T,5T for different working condition

Superior performances

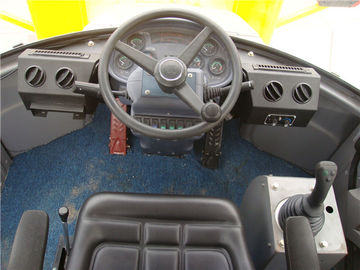

Whole machine—Equipped with professional air-condition, single handle pilot control system, electronic control gearshift device to ensure easy operation, Independent transmission oil and Hyd. Oil radiator improve the system stability.

Drive axle—Bigger and enhanced drive axles special for forklift loaders. The bearing gears and supporting axle are all bigger. Reliable transmission system, large supporting weight. Using special heavy vehicle brake material. Effectively ensuring the braking effect. Reduce failure rate overall.

Oil cylinder—Bigger external diameter of oil cylinder and tilt cylinder piston ,higher strength seal processing to ensure system pressure of whole machine.

Steering system— With amplified flow and bigger steering cylinders to ensure the flexible steering when it is with full loading. Ensure system pressure and lifting strength of whole machine.

Oil pipe—oil-pipes for high-pressure position adopts high-value and durable PARKER pipe. More reliable and durable.

  • Special design , thickening steel plate, the thickness of lift-arm and hinged panels reaches 60mm, Bigger hinged pin and hinged bearing to fully improve the carrying capacity. Lift-arm increases the lower beam structure which to improve torsional performance, the operating weight reaches 33000kg and the width reaches 3000mm to effectively improve the lateral stability of the whole machine.

Transmission and torque converter—Adopt CAT technology fixed shaft power shift transmission system, compact structure, long service life of gear. Make the whole machine more flexible, special for the harsh quarries’ working environment.

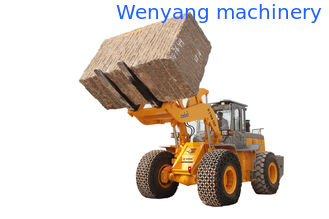

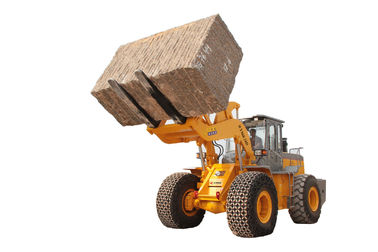

Fork—Bigger forks and fork arm carrier, the width of fork reaches 280mm; The fork distance reaches 1620mm to ensure the big block is not easy to slide. Fork slope angle reaches 18 º, effectively solve the problem of unloading slope angle and taking out the fork when the height of the stacking goods reaches 3150 mm and height of loading reaches 1680 mm

Description Specifications Unit
Engine 178kw WEICHAI engine mm
Overall dimension(L×W×H) 9000×2990×3650
Max. lifting height Forks at level 3450

Mm

mm

Take back Fork 3750
Operating weight 32500 kg
Max. Limited Load 27000 kg
Dimensions of fork (L×W×H) 1400×250×110 mm
Distance of fork ≤1350 mm
Rated loading capacity 25000 kg
Turning angle ±35°
Turning radius 7735 mm
Wheel base 3700 mm
Tread 2300 mm
Min. Ground clearance 430 mm
Unloading angle 18°
Haul location height(Ground clearance of material) 300 mm
Fuel tank capacity 380 L
Hydraulic fuel tank capacity 380 L
Specification of tyre Front wheel 26.5 steel wire tire
Rear wheel 26.5 strengthen tire

Engine System
Model WEICHAI ------WD10G240E21
Rated power 178kw
Type Top-grade Diesel WEICHAI engine, co-worker of German Deutz Company and AVL technology, Austria; 6 Cylinders, Turbocharged Intercooled, with multinomial patents, synthesize multilevel compound desert air filter technology, high efficiency, low noise and cooling technology, especially using in dusty environment.
Rated speed 2200r/min
Max. torque 1000Nm
Total air displacement 220g/kw.h
Number of cylinders-stroke 6-Ф126×130
Fuel consumption 16 L/H




Sell small capacity wheel loader with fork 1T, 1.6T,2T,2.5T,3T,3.5T,5T for different working condition

Sell small capacity wheel loader with fork 1T, 1.6T,2T,2.5T,3T,3.5T,5T for different working condition

Sell small capacity wheel loader with fork 1T, 1.6T,2T,2.5T,3T,3.5T,5T for different working condition

Superior performances

Whole machine—Equipped with professional air-condition, single handle pilot control system, electronic control gearshift device to ensure easy operation, Independent transmission oil and Hyd. Oil radiator improve the system stability.

Drive axle—Bigger and enhanced drive axles special for forklift loaders. The bearing gears and supporting axle are all bigger. Reliable transmission system, large supporting weight. Using special heavy vehicle brake material. Effectively ensuring the braking effect. Reduce failure rate overall.

Oil cylinder—Bigger external diameter of oil cylinder and tilt cylinder piston ,higher strength seal processing to ensure system pressure of whole machine.

Steering system— With amplified flow and bigger steering cylinders to ensure the flexible steering when it is with full loading. Ensure system pressure and lifting strength of whole machine.

Oil pipe—oil-pipes for high-pressure position adopts high-value and durable PARKER pipe. More reliable and durable.

  • Special design , thickening steel plate, the thickness of lift-arm and hinged panels reaches 60mm, Bigger hinged pin and hinged bearing to fully improve the carrying capacity. Lift-arm increases the lower beam structure which to improve torsional performance, the operating weight reaches 33000kg and the width reaches 3000mm to effectively improve the lateral stability of the whole machine.

Transmission and torque converter—Adopt CAT technology fixed shaft power shift transmission system, compact structure, long service life of gear. Make the whole machine more flexible, special for the harsh quarries’ working environment.

Fork—Bigger forks and fork arm carrier, the width of fork reaches 280mm; The fork distance reaches 1620mm to ensure the big block is not easy to slide. Fork slope angle reaches 18 º, effectively solve the problem of unloading slope angle and taking out the fork when the height of the stacking goods reaches 3150 mm and height of loading reaches 1680 mm

Description Specifications Unit
Engine 178kw WEICHAI engine mm
Overall dimension(L×W×H) 9000×2990×3650
Max. lifting height Forks at level 3450

Mm

mm

Take back Fork 3750
Operating weight 32500 kg
Max. Limited Load 27000 kg
Dimensions of fork (L×W×H) 1400×250×110 mm
Distance of fork ≤1350 mm
Rated loading capacity 25000 kg
Turning angle ±35°
Turning radius 7735 mm
Wheel base 3700 mm
Tread 2300 mm
Min. Ground clearance 430 mm
Unloading angle 18°
Haul location height(Ground clearance of material) 300 mm
Fuel tank capacity 380 L
Hydraulic fuel tank capacity 380 L
Specification of tyre Front wheel 26.5 steel wire tire
Rear wheel 26.5 strengthen tire

Engine System
Model WEICHAI ------WD10G240E21
Rated power 178kw
Type Top-grade Diesel WEICHAI engine, co-worker of German Deutz Company and AVL technology, Austria; 6 Cylinders, Turbocharged Intercooled, with multinomial patents, synthesize multilevel compound desert air filter technology, high efficiency, low noise and cooling technology, especially using in dusty environment.
Rated speed 2200r/min
Max. torque 1000Nm
Total air displacement 220g/kw.h
Number of cylinders-stroke 6-Ф126×130
Fuel consumption 16 L/H
