Wenyang machinery WY978J 12Ton wheel loader with log grapple suitable for big diameter wood log

I'm Online Chat Now

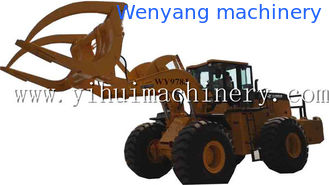

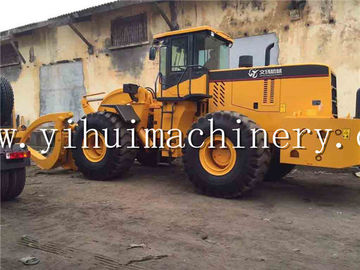

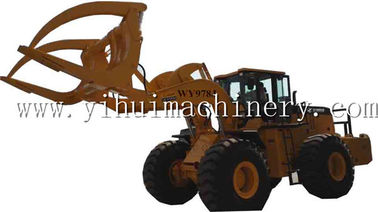

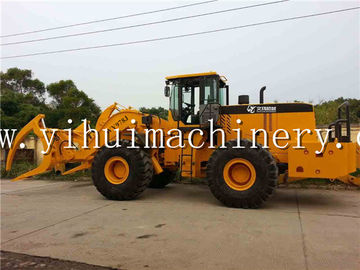

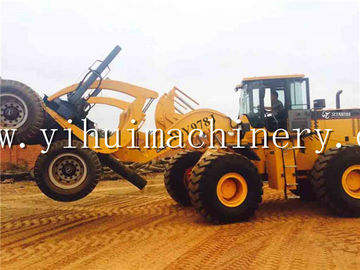

Wenyang machinery WY978J 12Ton wheel loader with log grapple suitable for big diameter wood log

China Wenyang machinery WY978J 12Ton wheel loader with log grapple suitable for big diameter wood log supplier
Wenyang machinery WY978J 12Ton wheel loader with log grapple suitable for big diameter wood log supplier Wenyang machinery WY978J 12Ton wheel loader with log grapple suitable for big diameter wood log supplier Wenyang machinery WY978J 12Ton wheel loader with log grapple suitable for big diameter wood log supplier Wenyang machinery WY978J 12Ton wheel loader with log grapple suitable for big diameter wood log supplier

Large Image :  Wenyang machinery WY978J 12Ton wheel loader with log grapple suitable for big diameter wood log

Product Details:

Place of Origin: China
Brand Name: Wenyang machinery
Certification: ISO 9001-2008 SGS
Model Number: WY978J

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: 1 unit /40HQ or by RORO
Delivery Time: 25 days after receiving deposit
Contact Now
Detailed Product Description
Rated Capacity: 12TON Tire: 26.5-25
Max Dumping Height: 4150mm Engine: Weichai
Engine Power: 199KW Operating Weight: 25.5TON
Dimension: 9500*3130*3800mm Moving Type: Wheel Loader


Wenyang machinery WY978J 12Ton wheel loader with log grapple suitable for big diameter wood log



Wenyang machinery WY978J 12Ton wheel loader with log grapple suitable for big diameter wood log

Wenyang machinery WY978J 12Ton wheel loader with log grapple suitable for big diameter wood log

Wenyang machinery WY978J 12Ton wheel loader with log grapple suitable for big diameter wood log

Excellent performance



▼Engine ---Weichai styer WD10G270E201 power 199kw,high-end engine ,high efficiency and low noise cooling technology . Powerful ,reliable performance .

▼Tnak----reinforced structure to ensure the tank intensity under vibration .Fuel tank capacity is 280L,can meet the oil demand after a long time and continuous operation .

▼Counterweight ---large steering angle and thick slabs counterweight ,not only reliable but also practical.

▼Boom cylinder ,the rotating bucket cylinder-reinforced type cylinder piston rod.

▼Drive axle-increase ,enhanced professional drive axle, bearing gears ,wheels hub, increase block bearing ,use special heavy vehicle brake materials and advanced hydraulic technology .Effectively guarantee the brake performance ,reduce the fault rate.

▼Boom---lengthen ,double-thick type boom, shift within the fulcrum force ,increase and guarantee the strength.

▼Front and rear frame –special design and manufacture of the frame ,with a strong ability to support and lateral stability of the vehicle .

▼Tires ---front wheel for forestry special 26.5R25 steel wire tire.

Item Unit Specification
Engine rated power kw 199
Overall dimension(L*W*H) With extended arm mm 9500*3130*3800
Maximum dump height Flat at the bottom of the fork mm 4150
Fork tiled down mm 3400
Rated load kg 12000
Total weight kg 25500
Dimensions of fork L*W*H mm 1986*2660*1851
Distance of clamp fork mm 2600
Diameter range mm 1000-2000
Dumping reach Ordinary arm mm 2050
Maximum torque N.m 920
Turing angle . 32
Biggest opening size mm 2250
Max.climbing gradient . ≤ 25
Min.turing radius mm 7250
Wheelbase mm 2510
Tread mm 3550
Min. ground clearance mm 680
Pallet fork travel angle . 95
Turing radius when fork at haul location mm 6470
Fuel tank capacity L 280
Hydraulic fuel tank capacity L 280
Tyre specification   26.5-25
