| Rated Load: | 4500kg | Lifting Capacity To Full Height: | 3600kg |
|---|---|---|---|
| Lifting Capacity At Full Reach: | 2250kg | Max.lifting Height: | 8100mm |
| Max.forward Reach: | 4500mm | Engine: | 4BTAA3.9-C125 |
| Engine Power: | 93kw |

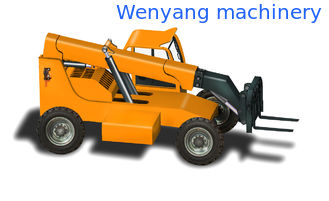

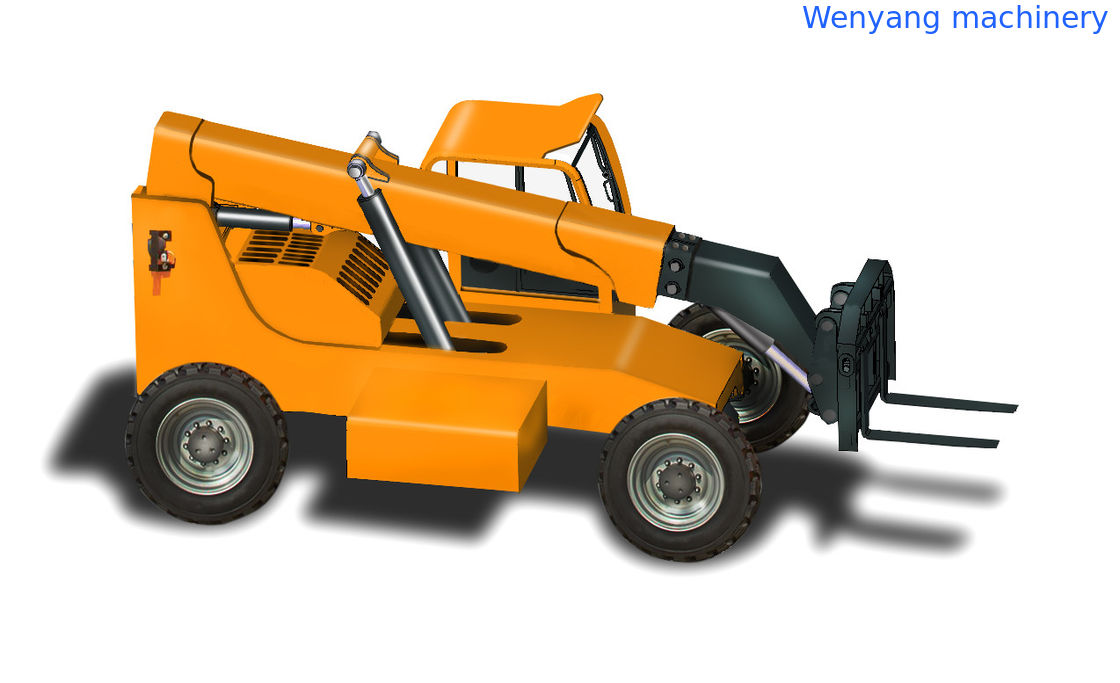

China made 4.5ton 4WD Cummins engine 93KW 8m lifting height telehandler
| WY45-4 telescopic forklift specification | |
| Overall weight | 11800kg |
| Max.rated load | 4500kg |
| Lifting capacity to full height | 3600kg |
| Lifting capacity at full reach | 2250kg |
| Max.lifting height | 8100mm |
| Max.forward reach | 4500mm |
| Engine brand | Cummins |
| Engine model | 4BTAA3.9-C125 |
| Engine power | 93KW |
| Overall length | 6400mm |
| Overall width | 2400mm |
| Overall height | 2700mm |
| Wheel base | 3250mm |
| Tread | 1970mm |
| Min ground clearance | 400mm |
| Fork length | 1200mm |
| Departure angle | 36° |
| Max.traction (load-free) | 48kN |
| Min,turing radius (tire lateral) | 5100mm |
| Max. gradeability | 25° |
| Travel speed I | 10km/h |
| travel speed II | 30km/h |
