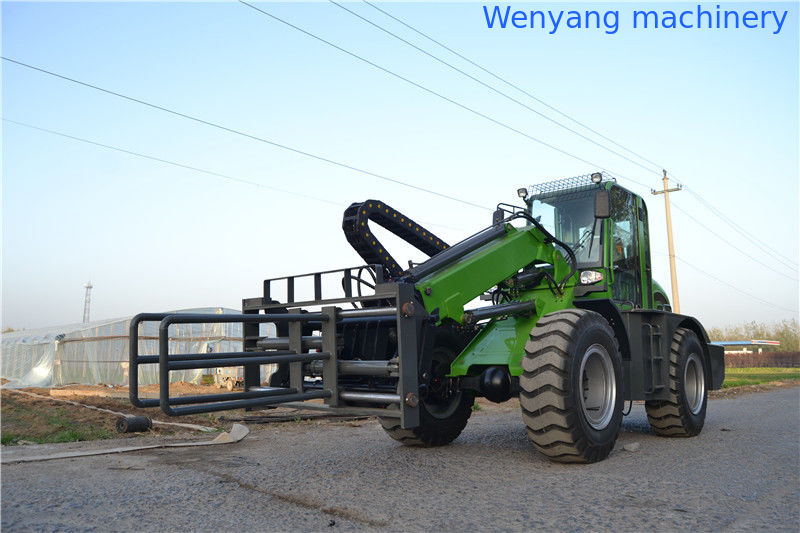

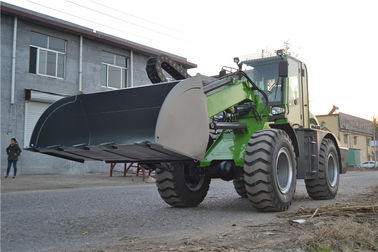

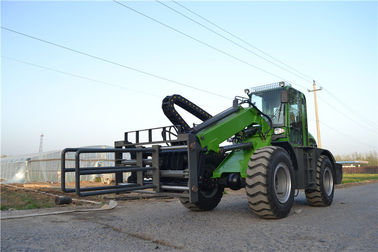

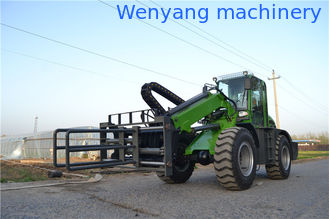

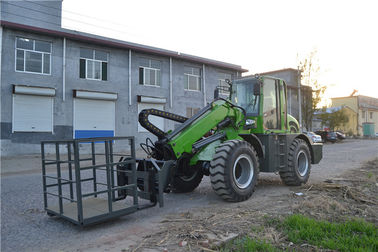

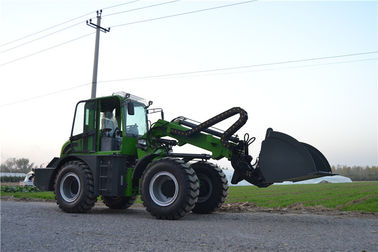

3ton 1.5m3 bucket telescopic boom wheel loader with max lifting height 6050mm

3ton 1.5m3 bucket telescopic boom wheel loader with max lifting height 6050mm

Features :

1. Equipped with Yunnei Engine, optional Weichai Engine,Yuchai engine, Dongfeng Cummins

2. High quality self-made hydraulic gearbox and driving axle.

3. Choose best hydraulic components, pilot operation, easy and durable.

4. Strong and durable frame, have the automatic flat function in high place.

5. (Quick change )option attachment:wooden fork, pallet fork, grass fork, rock bucket, bigger bucket,

snow bucket, mixing bucket etc.

6. Changeable luxurious meter, back camera, more comfortable for driving.

7. High pressure and safer air assist disc brake braking system

8. According to clients’ request, customize higher dumping and longer arm products.

Specification:

.0 Engine Details

(1) Model: YUNNEI Engine

(2) Engine Type:In-line arrangement, water-cooled, four-cycle diesel,turbocharged Engine

(3) Rated Power:90KW

(4) Rated Speed:2400 r/p.min (rpm)

(5)Optional Engine:Cummins engine(90KW),Weichai engine(83KW),Yuchai(85KW)

2.0 Transmission System

Hydraulic converter + gearbox+drive shaft + hub reduction axles

3.0 Bucket

(1) Bucket Capacity: 1-1.5m³

(2) Bucket width: 2000mm

(3) Bucket type:Heavy-duty bolt on teeth

(4) Rated Load: 3000kg including attachment

4.0 Overall Dimensions

(1) Overall Length: 7650mm

(2) Overall Height:3000mm

(3) Overall Width: 2100mm

(4) Max. lifting Height:6050mm

5.0 Operating Specifications

(1) Steering System: Articulated Frame with hydraulic power steering

(2) Min Turning Radius: 5800mm

(3) Driving System: Hydraulic converter, four wheel drive

(4) European quick coupling system

(5) Joystick control

6.0 Brake System

(1) Service Brake:Safer air assist disc brake braking system

(2) Parking Brake:Hand operated(Disc brakes)

7.0 Tire

(1) Model:17.5-25 (2)Width: 445mm

8.0 Wheelbase: 2710mm

9.0 Track: 1655mm

10.0 Operation weight:7800KG
