| Name: | Telescopic Loader | Attachment: | Workign Platform |
|---|---|---|---|
| Available: | Lifting Machinery | Max Lifting Height: | 5.4m |
| Suitable: | Hay Stacking |

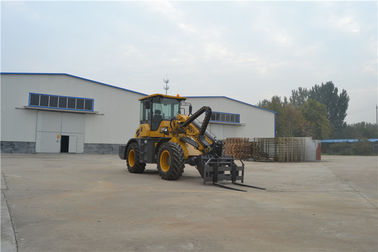

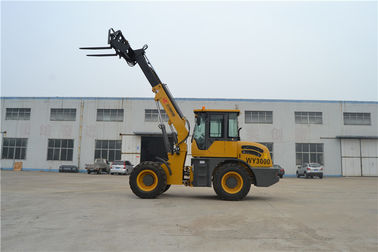

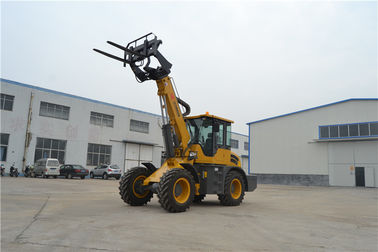

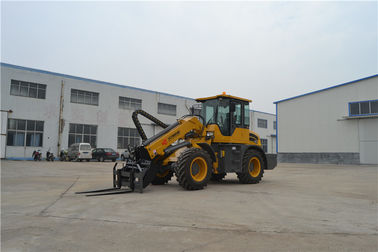

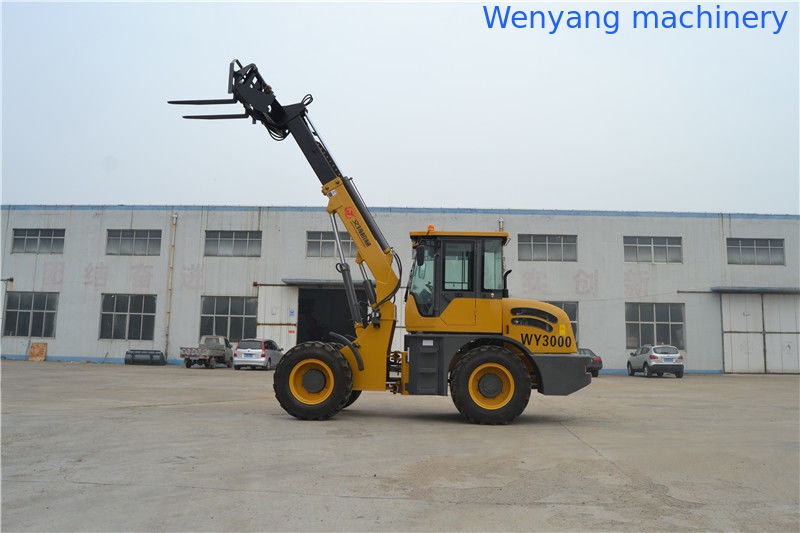

WY3000 5.4m lifting height telescopic forklift for hay stacking
Performance and characteristic
1. Equipped with YUNNEI engine, optional YUCHAI or CUMMINS engine.
2. High quality self-made hydraulic gearbox and driving axle.
3. Choose best hydraulic components, pilot operation, easy and durable.
4. Strong and durable frame, have the automatic flat function in high place.
5. (Quick change )option attachment:wooden fork, pipe fork, pallet fork, grass fork, rock bucket, bigger bucket, snow bucket, mixing bucket etc.
6. Optional luxurious meter, air conditioner, back camera, more comfortable for driving.
7. High pressure and safer air assist disc brake braking system
8. According to clients request, customize higher dumping and longer arm products.
| Engine Model | YUNNEI Engine |
| Engine Type | In-line arrangement, water-cooled, four-cycle diesel,turbocharged Engine |
| Rated Power | 92KW |
| Rated Speed | 2400 r/p.min (rpm) |
| Optional Engine | CUMMINS engine(74.5KW |
| 2.0 Transmission System | Hydraulic converter + gearbox+drive shaft + hub reduction axles |
| Bucket Capacity | 1.5m³ |
| Bucket width | 2300mm |
| Bucket type | Heavy-duty bolt on teeth |
| Rated Load | 3000kg including attachment or bucket |
| Overall Length | 6860mm |
| Overall Height | 2860mm |
| Overall Width | 2300mm |
| Max lifting height | 5850mm |
| Lifting to bucket hinge pin Height | 5400mm |
| Bucket Unloading Height | 4650mm |
| Steering System: | Articulated frame with hydraulic power steering |
| Min Turning Radius | 5800mm |
| Driving System | Hydraulic converter, four wheel drive |
| European quick coupling system | |
| Joystick control | |
| Brake System | (1) Service Brake:Safer air assist disc brake braking system |
| (2) Parking Brake:Hand operated(Disc brakes) | |
| Tire | (1) Model:16/70-24 (2)Width: 410mm(3) Diameter: 1175mm |
| (2) Optional Model:17.5-25 (2)Width: 440mm (3)Diameter: 1280mm | |
| Wheelbase | 2430mm |
| Track | 1700mm |
| .Operation weight | :7100KG |
