China made 2.5ton 4WD Cummins engine 75KW 8m lifting height telescopic forklift

I'm Online Chat Now

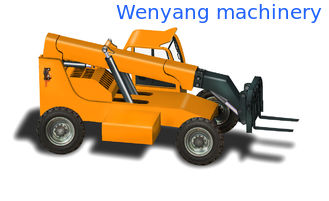

China made 2.5ton 4WD Cummins engine 75KW 8m lifting height telescopic forklift

China China made 2.5ton 4WD Cummins engine 75KW 8m lifting height telescopic forklift supplier

Large Image :  China made 2.5ton 4WD Cummins engine 75KW 8m lifting height telescopic forklift

Product Details:

Place of Origin: China
Brand Name: Wenyang Machinery
Certification: ISO9001
Model Number: WY25-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 1 month
Supply Ability: 800sets/year
Contact Now
Detailed Product Description
Rated Load: 2500kg Lifting Capacity To Full Height: 2200kg
Lifting Capacity At Full Reach: 900kg Max.lifting Height: 8100mm
Max.forward Reach: 4500mm Engine: Cummins 4BTA3.9-C100
Engine Power: 75kw

China made 2.5ton 4WD Cummins engine 75KW 8m lifting height telescopic forklift



WY25-4 telescopic forklift specification
Overall weight 8000kg
Max.rated load 2500kg
Lifting capacity to full height 2200kg
Lifting capacity at full reach 900kg
Max.lifting height 8100mm
Max.forward reach 4500mm
Engine brand Cummins
Engine model 4BTA3.9-C100
Engine power 75KW
Overall length 6400mm
Overall width 2400mm
Overall height 2700mm
Wheel base 3250mm
Tread 1970mm
Min ground clearance 400mm
Fork length 1200mm
Departure angle 36°
Max.traction (load-free) 45kN
Min,turing radius (tire lateral) 5100mm
Max. gradeability 25°
Travel speed I 10km/h
travel speed II 30km/h
