China made 2500kg Hand Pallet Truck with Integrated Pump Bf-III

I'm Online Chat Now

China made 2500kg Hand Pallet Truck with Integrated Pump Bf-III

China China made 2500kg Hand Pallet Truck with Integrated Pump Bf-III supplier
China made 2500kg Hand Pallet Truck with Integrated Pump Bf-III supplier China made 2500kg Hand Pallet Truck with Integrated Pump Bf-III supplier

Large Image :  China made 2500kg Hand Pallet Truck with Integrated Pump Bf-III

Product Details:

Place of Origin: China
Brand Name: Wenyang Machinery
Certification: ISO CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: Exporting cargo
Contact Now
Detailed Product Description
Max Lifting Height:: 185/195mm Fork Length: 1150/1220mm
Rated Load: 2500kg Condition: New

Product Description
China made 2500kg hand pallet truck with Integrated pump BF-III
1.Integrated pump without welding , no any leaking problems.
2.Frame force is more reasonable , and the strength is more reliable.
3.Handle seat has hole it is more convenient for installation of control chain.
4.Forks lowering speed is controllable, with overload valve to avoid overloading.
Remark: Special size for width and length can be made according to customer's requirement.

Option:
1) steering wheel 200mm (fork wheel 80mm) are available.
2) Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.
3) Fork length:800mm,900mm,1000mm,1100mm.
4) Foot pedal release.
5)Pump color: black paiting.
6)Quick lift (double speed lifting)

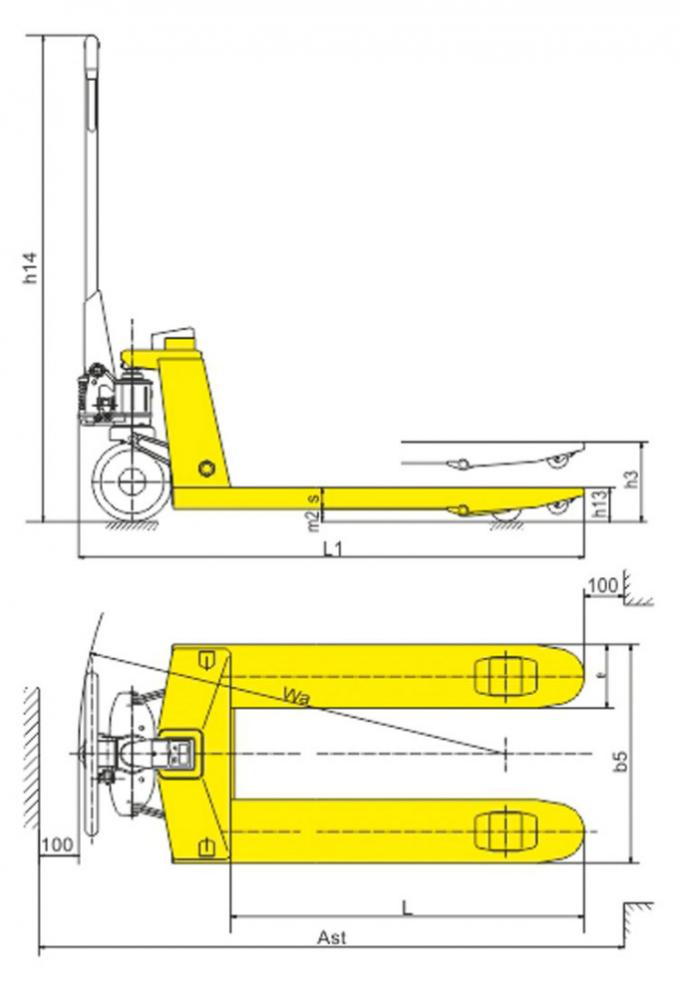

Model   BF-III
Capacity Q(kg) 2500 2500
Lowered fork height H13(mm) 85 75
steering wheel mm φ180 φ180
fork wheel single mm φ74×93 φ74×93
fork wheel double mm φ74×70 φ74×70
Max. Lifting height h3(mm) 195 185
Height of tiller in drive position min./max. h14(mm) 1214 1214
Overall length l1(mm) 1543/1613 1543/1613
Fork length l(mm) 1150/1220 1150/1220
Width overall forks b5(mm) 520/550/685 520/550/685
Ground clearance, center of wheelbase m2(mm) 32 22
Aisle width for pallets 1000×1200 crossways Ast(mm) 1743/1813 1743/1813
Aisle width for pallets 800×1200 lengthways Ast(mm) 1793/1813 1793/1813
Turning radius Wa(mm) 1276/1346 1276/1346
Service weight kg 58-70 58-70

China made 2500kg Hand Pallet Truck with Integrated Pump Bf-III

China made 2500kg Hand Pallet Truck with Integrated Pump Bf-III

China made 2500kg Hand Pallet Truck with Integrated Pump Bf-III
