| Condition: | New | Rated Load: | 18T |
|---|---|---|---|
| Enegine Brand: | Weichai | Engine Power: | 175kw |
| Dimension: | 8020×2990×3300 | Fork Dimension: | 1500×200×100mm |

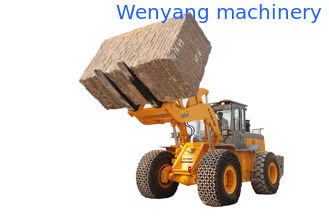

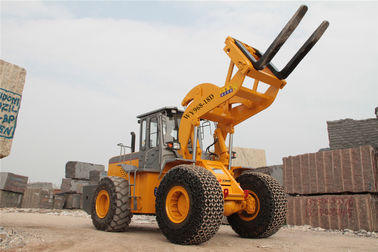

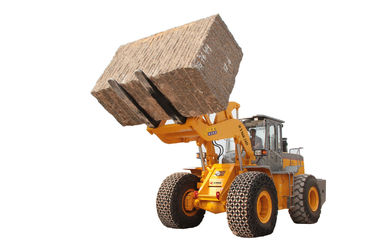

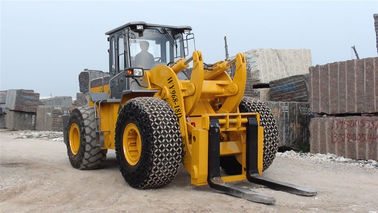

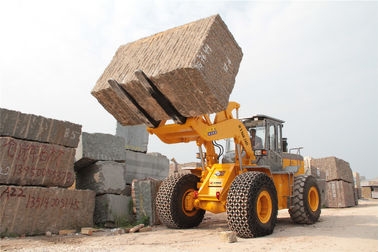

Good quality wenyang machinery WY968-18D 18ton fork loader 175KW Weichai engine
Superior performance:
Cross-country---to integrate advantages of cross-country forklift and wheel loader, also strengthened and improved systematically.
Safe---the strengthened whole machine system and driving room with safe designed, using of safe guard.
Energy-saving---top-grade WEICHAI engine which with multinomial patents and special technology, fuel-efficient and high efficiency and durable.
Multifunction---with fork or bucket for dual-purpose, driver’s cab can be used with or without safety guard and guardrail to carry out a tractor serves several purposes.
The WY968-18D Block handler is designed to use in harsh environment of block handler applications, it has the following advantage:
| Description | Specifications | Unit | ||||
| Rated power | 175 | kw/h | ||||
| Overall Dimension(L×W×H)(with safety guard) | with fork | 8020×2990×3300 | mm | |||
| Max. lifting height | with fork | 3480 | ||||
| Operating weight | 233000 | kg | ||||
| Rated loading capacity | 18000 | kg | ||||
| Bucket capacity | 2.7 | m3 | ||||
| Dimensions of fork | L×W×H | 1500×200×100 | mm | |||
| Distance of fork | ≤1220 | mm | ||||
| Rated loading capacity | 18000 | kg | ||||
| Safety guard | Height | 1770 | mm | |||
| Driver’s cab | Height | 1680 | ||||
| Turning angle | with fork | ±35° | ||||
| Turning radius | with fork | 7250 | ||||
| Wheel base | 3250 | mm | ||||
| Tread | 2300 | mm | ||||
| Min. Ground clearance | 530 | mm | ||||
| Distance of rear axle to the link points | 2300 | mm | ||||
| Front overhang length | 2040 | mm | ||||
| Unloading angle | with fork | 16° | ||||
| (With fork)Haul location height(Ground clearance of material) | 300 | mm | ||||
| Turning radius when fork at haul location | 6470 | mm | ||||
| Fuel tank capacity | 280 | L | ||||
| Hydraulic fuel tank capacity | 280 | L | ||||
| Specification of tyre | front wheel | 23.5 R25 | ||||
| rear wheel | 23.5-25-24PR | |||||
