Tree transplanter

China Tree transplanter supplier

Large Image :  Tree transplanter

Product Details:

Place of Origin: CHINA
Brand Name: Wenyang mahinery
Certification: ISO ,CE
Model Number: 050336 / 050344 / 050350

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Detailed Product Description

Tree transplanter
Adjustable Legs: Allow for digging five different root-ball sizes with one tree spade.
Blade Versatility: Modified and cone blade configurations are available, providing a wide variety of blades for any jobsite opportunity.
Bobcat® Orange Color: Delivers better attachment visibility when digging.
Compact Design: Allows for attachment operation in confined areas without damaging nearby trees or landscaping.
Open Frame Design: Provides excellent visibility to the base of the tree.
Outside Frame Design: Featured on the 24- and 28-in. tree spade models, the outside frame design provides a wider space for the tree.
Inside Frame Design: Featured on spades 32-in. and above, the inside frame helps maintain the integrity of the rootball and allows for a more compact design
Overlapping Blades: Ensure clean root cutting and support of the root-ball.
Valve Options: Choose from a convertible valve or dedicated ACD valve to fit a wide range of fit-up to machines and operator preference

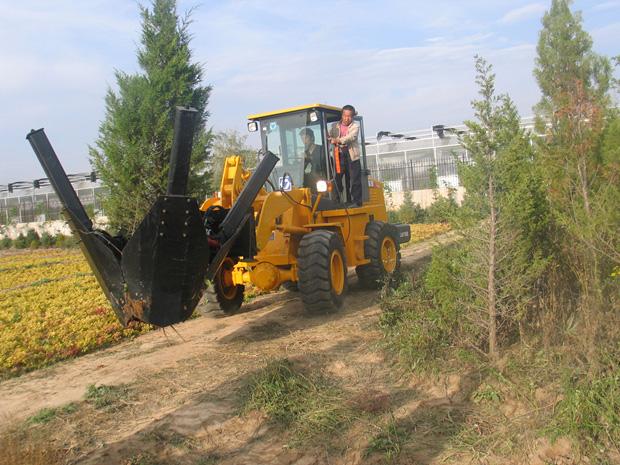

4 blades tree spade
The machine drives 4 digging blades to move into the soil within several minutes, makes the tree and its soil wrapped root held by the round space around by the 4 digging blades. And then it is raised slowly and up off the ground. By this way to realize the operator finishing quick digging, transporting and planting trees by sitting in the cab.


Model 050336050344 050350
outer sizesmm1991*1596*18681974*1692*1994 2030*2022*2390
Total Weightkg816825 890
Digging Depthmm747787 1030
Cutting Blades Angle°3030 30
Working FlowL/min60~8060~80 60-85
Working PressureMPa16~2116~21 16-21
Max. tree ball Diametermm9001100 1270
Fit tree Trunk Diametermm0-1000-120 0-220
