4 Drums sideshiter Drum clamps

China 4 Drums sideshiter Drum clamps supplier

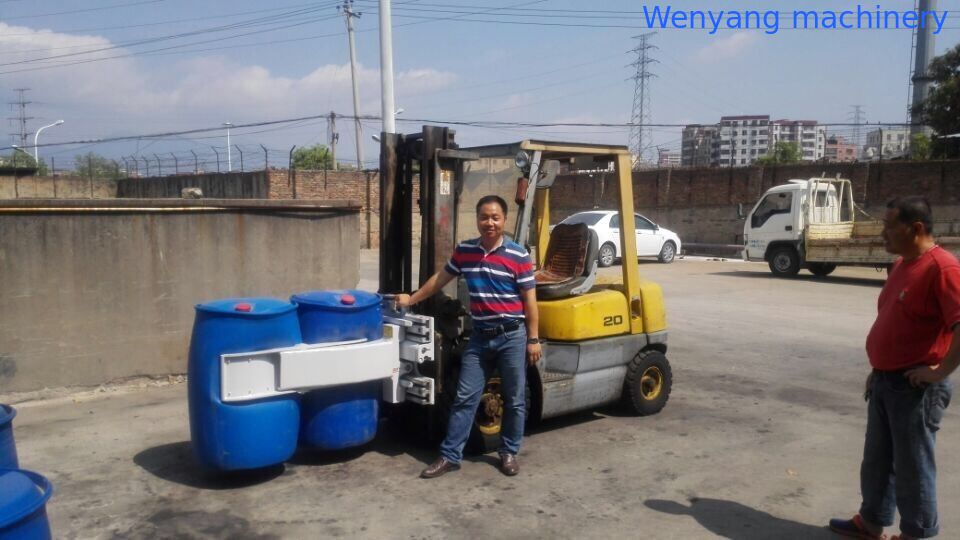

Large Image :  4 Drums sideshiter Drum clamps

Product Details:

Place of Origin: Xiamen China

Payment & Shipping Terms:

Minimum Order Quantity: 1
Delivery Time: 20 days
Shiping port: Xiamen
Contact Now
Detailed Product Description



Application

1.Drum clamps can make the lifting carry two or four oil drums at the same time, to ensure that this is safe and reliable clamping in the process of transportation,significantly improve handling. efficiency.Widely used in bulk cargo handling and piling work,such as oil, petrochemical,food and other industries.



4 Drums sideshiter Drum clamps

Features

1.Proven durable T-beam arm aluminium frame construction

2.Superior arm-slide bearing for extended service life

3.Regenerative hydraulic valving for optimal arm speed

4.Excellent driver visibility

5.Rubber pads on clamp arms can be replaced conveniently, it is economic and practical

6.Option 360 degree rotation



Capacity / Load Center
(kg@mm)

Type

Mounting Class

Opening Range
(mm)

Arm Height
(mm)

Arm Length
(mm)

Frame Width
(mm)

Overall Height

(mm)

Weight

(kg)

Effective

Thickness
(mm)

Horizontal
Center of Gravity
(mm)

1400@500

DFS20D-004A

II

335-1480

225

1060

940

645

385

147

290

1400@500

DFS20D-005A

II

420-1550

225

1060

865

620

370

142

312

1900@500

DFS20D-006A

II

460-1690

225

1060

940

645

395

147

295
