Forklift carton clamps

China Forklift carton clamps supplier

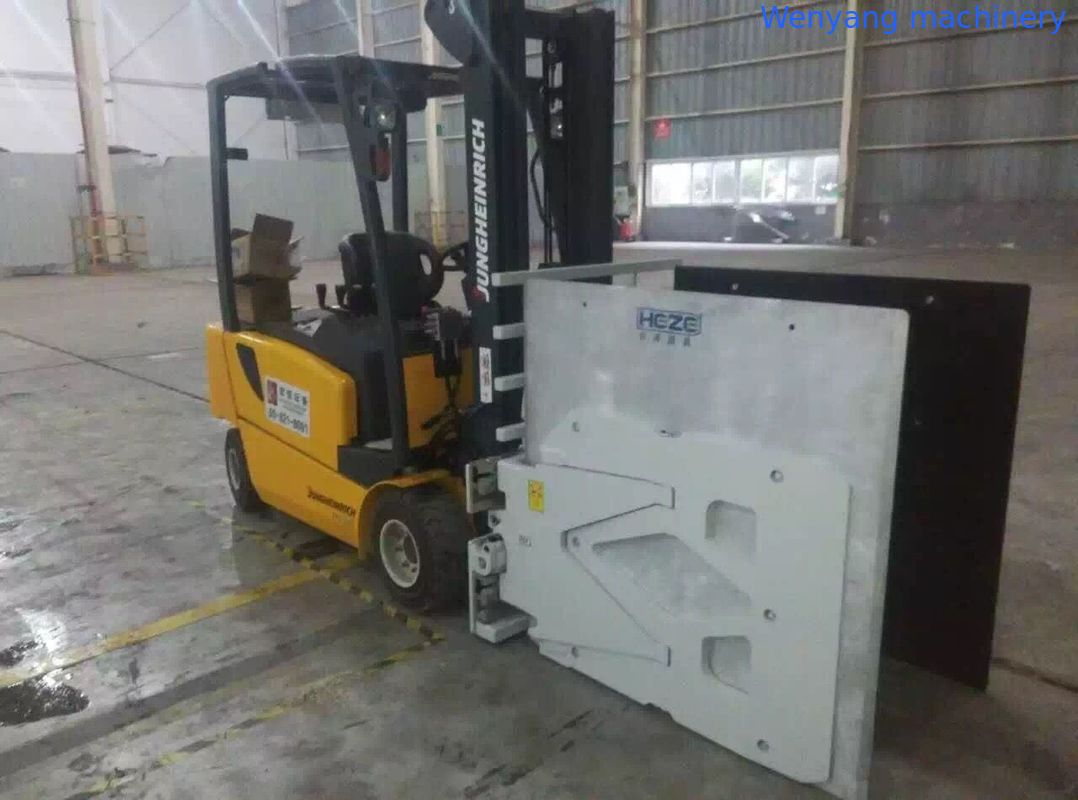

Large Image :  Forklift carton clamps

Product Details:

Place of Origin: Xiamen China

Payment & Shipping Terms:

Minimum Order Quantity: 1
Delivery Time: 20 days
Payment Terms: T/T
Shiping port: Xiamen
Contact Now
Detailed Product Description

Applications

1.Carton clamps can efficiently and econormically handle paper carton, wooden carton, metal carton and other scrap bales.

2.Applicable in such fields as storage, home electric appliance and electronics for handling and  and stacking paper carton goods without a tray

Features

1.Proven durable f-beam arm aluminum frame construction.

2.Regenerative hydraulic valving for optimal arm speed.

3.Superior arm-slide bearing for extended service life.

4.Vulcanized rubber pads design, economically.

5.Excellent driver visibility.



Forklift carton clamps

Capacity@Load Center(kg@mm) Catalog Order No. Opening Range      (mm) Mounting Class Arm Height A(mm) Arm Length B(mm) Frame Width D(mm) Vertical Center of Gravity VCG(mm) Weight (kg) Effective Thickness ET(mm) Horizontal Center of Gravity HCG(mm)
1150@600 CCS15D-001A 380-1530 II 1220 1220 940 320 650 127 439
1600@510 CCS20D-002A 560-1930 II 1200 1065 1040 325 644 127 422
1600@535 CCS20D-003A 560-1930 II 1220 1170 1040 325 651 127 427
1600@585 CCS20D-004A 560-1930 II 1220 1220 1040 315 696 127 447
1600@610 CCS20D-005A 560-1930 II 1220 1220 1040 320 705 127 450
1400@710 CCS20D-006A 560-1930 II 1220 1420 1040 315 770 127 483
1450@685 CCS20D-007A 560-1930 II 1525 1370 1040 380 824 127 485
2300@510 CCS30D-008B 535-1850 III 1525 1015 1015 450 899 152 485
2300@535 CCS30D-009B 535-1850 III 1525 1066 1015 450 906 152 485
